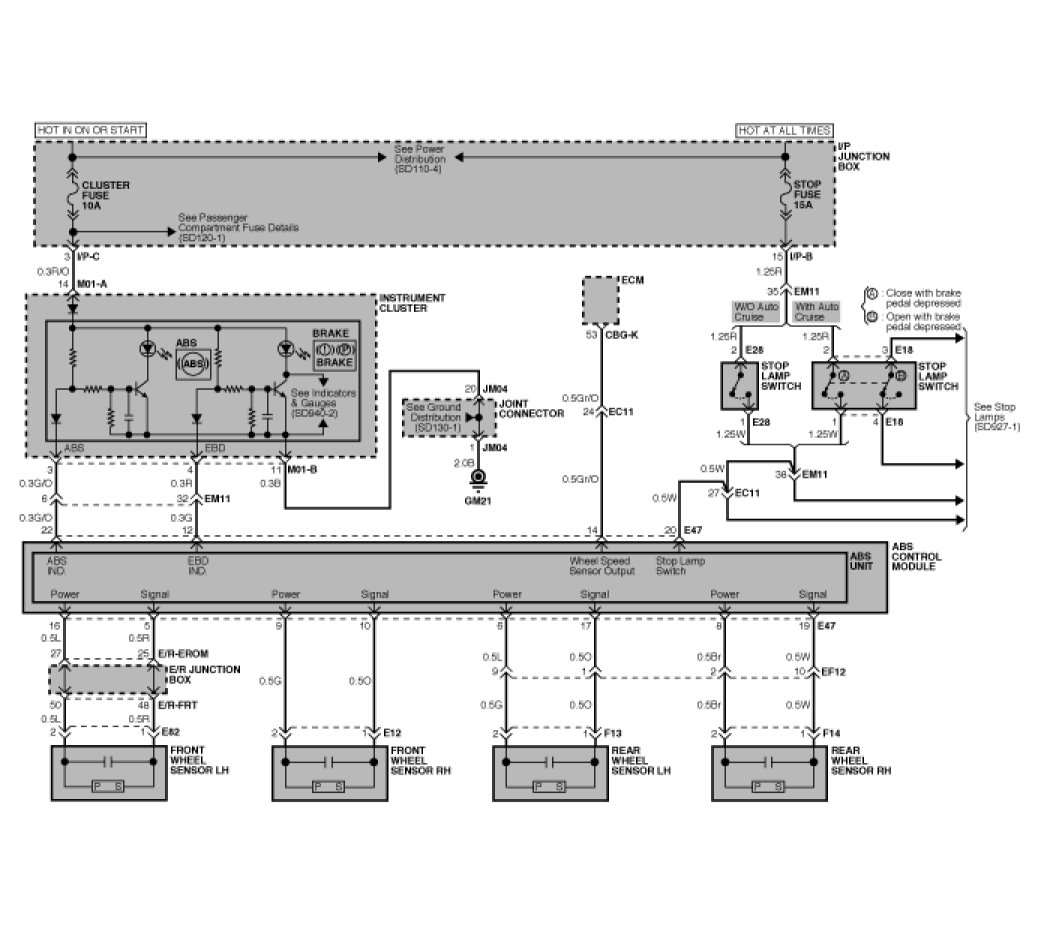

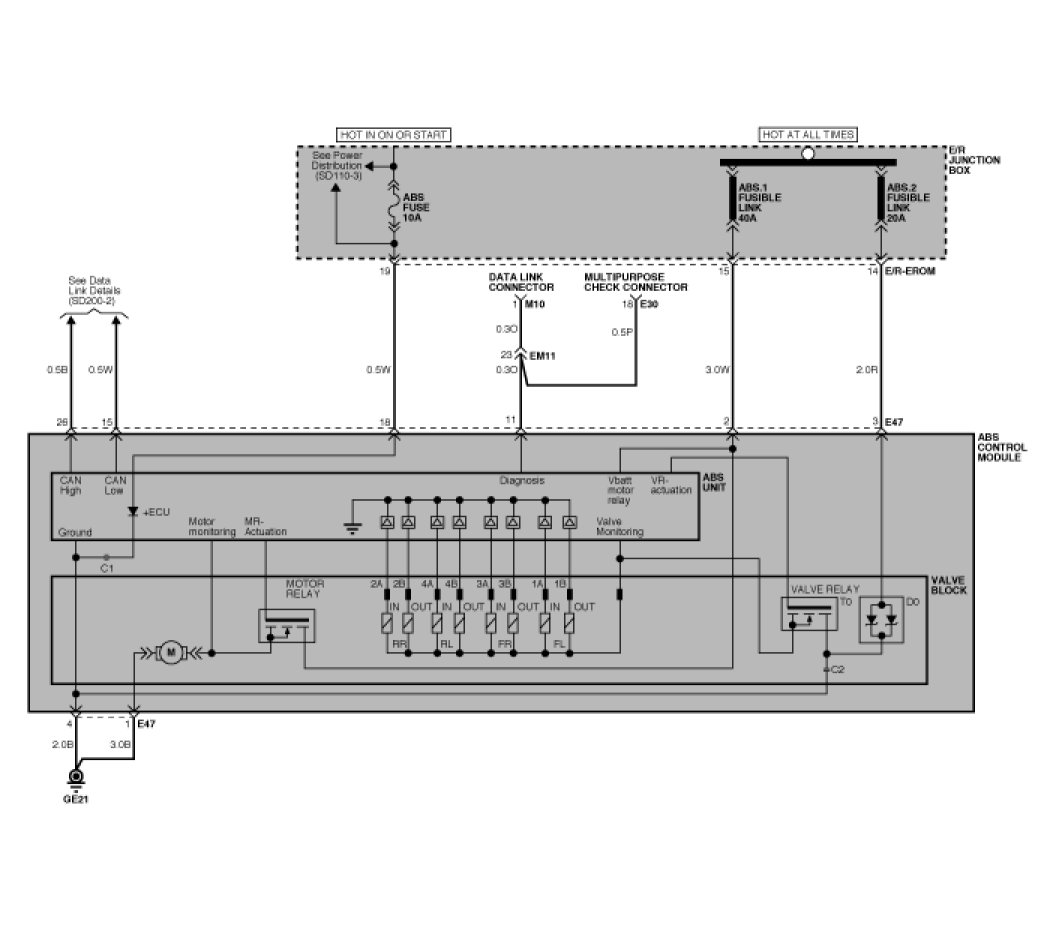

Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> ABS(Anti-Lock Brake System)
