Seat Assembly Replacement





Replacement

Seat Assembly Replacement

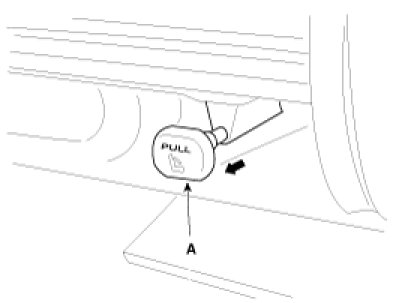

1. Pull the seat folding knob (A) forward.

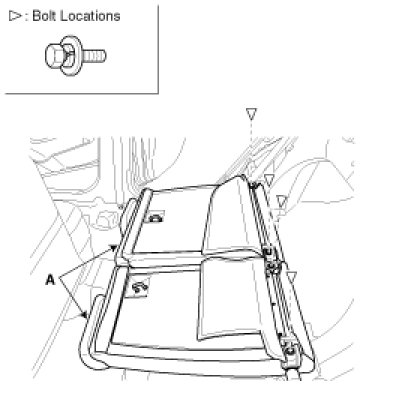

2. After loosening the mounting bolts, then remove the rear seat back (A).

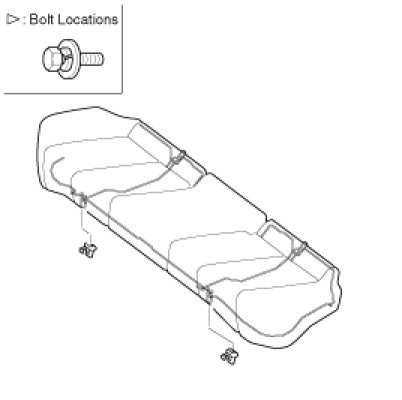

3. Remove the rear seat cushion (A).

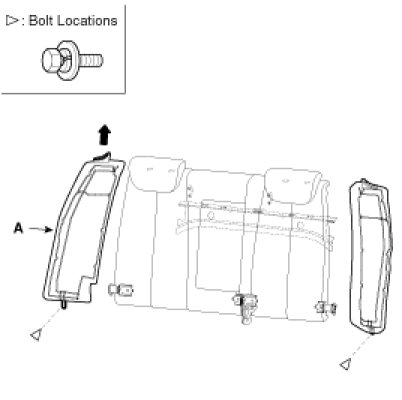

4. Remove the side rear seat back (A).




5. Installation is the reverse of removal.
