Seat Cover: Service and Repair

Replacement

Recliner Cover Replacement

[Driver's]
1. Remove the height lever cab.

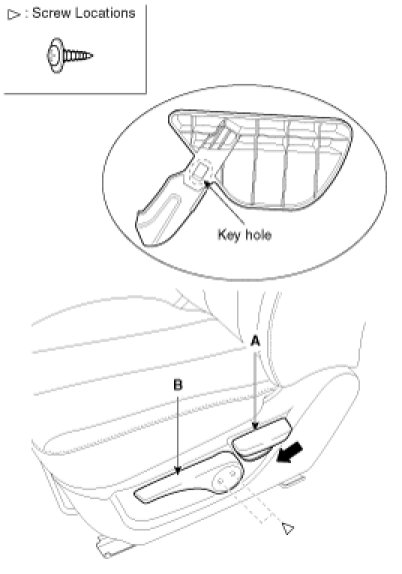

2. Remove the recliner lever (A).
3. After loosening the recliner mounting screw, then remove the height lever(B).

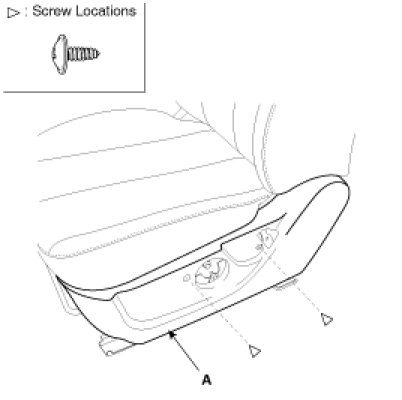

4. After loosening the mounting screws, then remove the recliner cover (A).

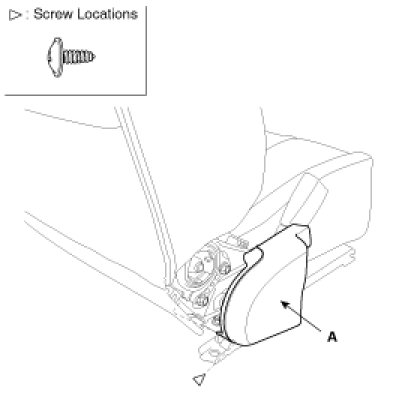

5. Remove the recliner cover (A).




6. Installation is the reverse of removal.

[Passenger's]

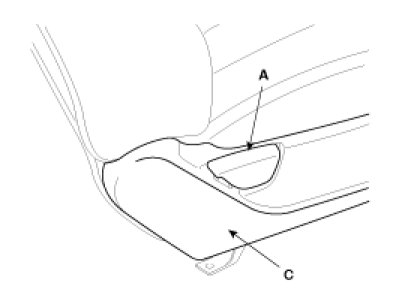

1. Remove the recliner lever (A).
2. Remove the recliner cover (C).




3. Installation is the reverse of removal.
