Trunk / Liftgate Lock Cylinder: Service and Repair

Replacement

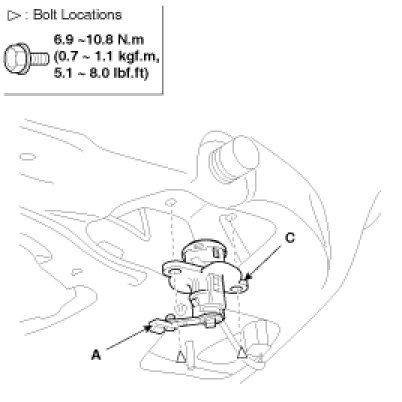

Key Holder Replacement
1. Remove the trunk lid trim.
2. Disconnect the rod (A).
3. After loosening the mounting bolt, then remove the key holder (C).




4. Installation is the reverse of removal.
