Passenger Assist Handle: Service and Repair

Replacement

Assist Handle Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

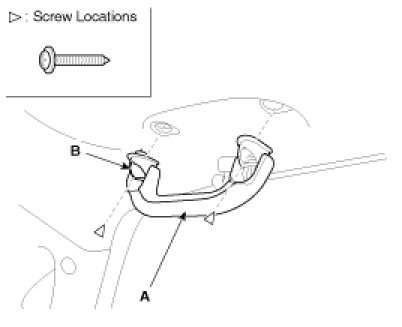

1. Remove the covers (B), and remove the screws, then remove the assist handle (A).




2. Installation is the reverse of removal.
