Arm Rest: Service and Repair

Replacement

Armrest Replacement

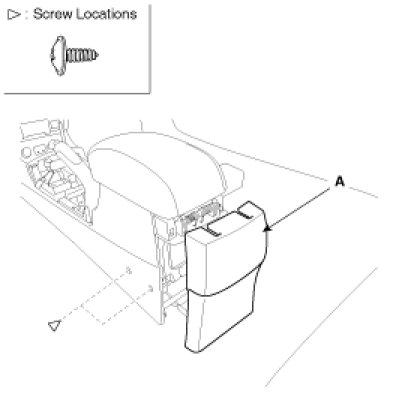

1. Remove the rear console cover (A).

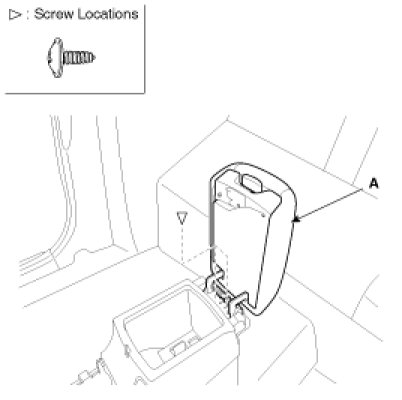

2. After loosening the armrest mounting screws, remove the armrest (A).




3. Installation is the reverse of removal.
