Trunk / Liftgate Latch: Service and Repair

Replacement

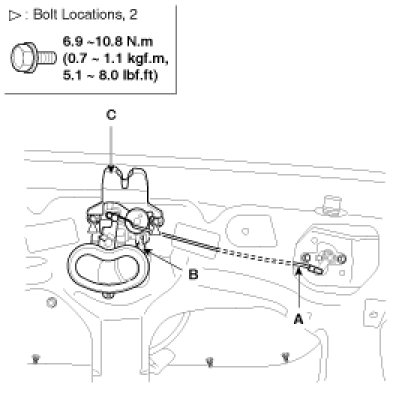

Trunk Lid Latch Replacement
1. Remove the trunk lid trim.
2. Disconnect the key cylinder rod (A).
3. After loosening the mounting bolt, then remove the latch assembly (C).
4. Disconnect the connector (B).




5. Installation is the reverse of removal.
