Hood Latch Release Cable: Service and Repair

Replacement

Hood Latch Cable Replacement
1. Remove the following items.
A. Hood latch.
B. Hood release handle.
C. Wheel guard.

NOTE:
- Take care not to bend the cable.

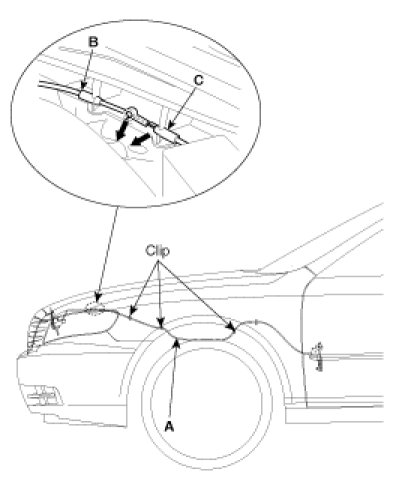

2. Disconnect the hood latch cable (B) and release cable (C).
3. Remove the hood latch cable (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch is connected properly.
- Replace any damaged clips.
