Door Checker Replacements

Replacements

Door Checker Replacement
1. Remove the following parts.
A. Door trim
B. Window glass
C. Door module

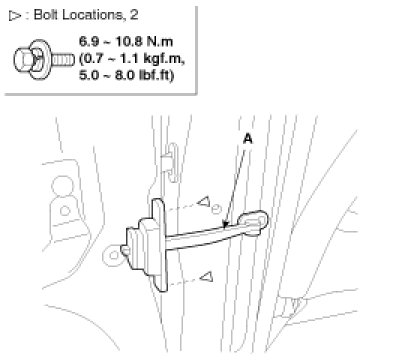

2. After loosening the mounting bolts, then remove the door checker (A).




3. Installation is the reverse of removal.
