Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Trip Computer >> Testing and Inspection

Trip Computer: Testing and Inspection





Inspection

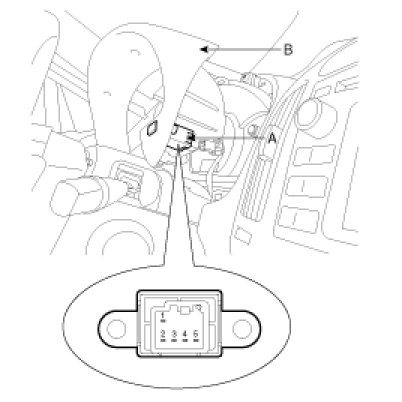

1. Remove the cluster facia panel (B).

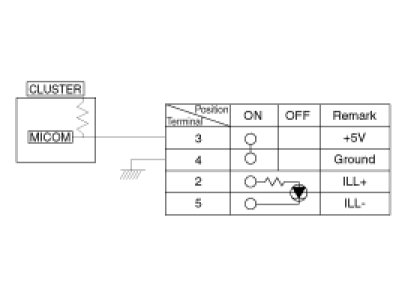

2. Operate the switch (A) and check for continuity between terminals with an ohmmeter.
