Radio, Stereo, and Compact Disc: Service and Repair

Replacement

Audio Assembly Replacement
1. Remove the center facia panel.

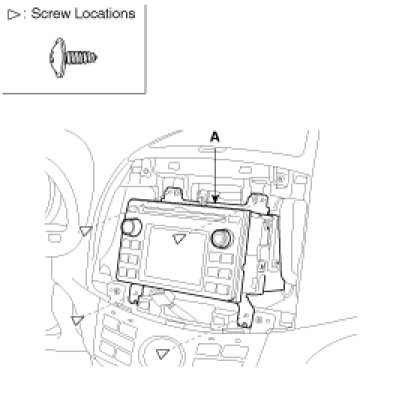

2. After loosening the audio mounting screws, then remove the audio(A).

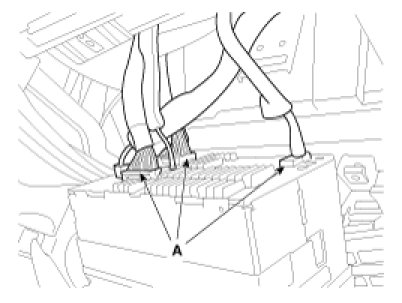

3. Disconnect the connector (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
