Alarm Horn: Testing and Inspection

Inspection

Burglar Horn

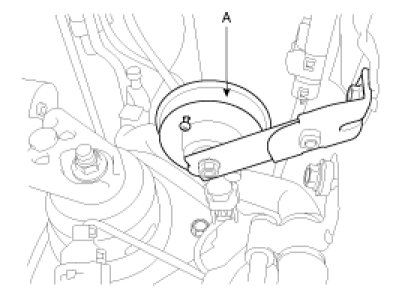

1. Remove the burglar horn after removing 1 bolt and disconnect the 2P connector from the burglar horn.




2. Test the burglar horn by connecting battery power to the terminal 1 and ground the terminal 2.
3. The burglar horn should make a sound. If the burglar horn fails to make a sound replace it.
