Component Inspection





Component Inspection

1. Ignition "OFF"
2. Measure resistance between terminals 77 and 78 of the ECM connector (ECM side)

Specification : Approx. 110 - 130 Ohms

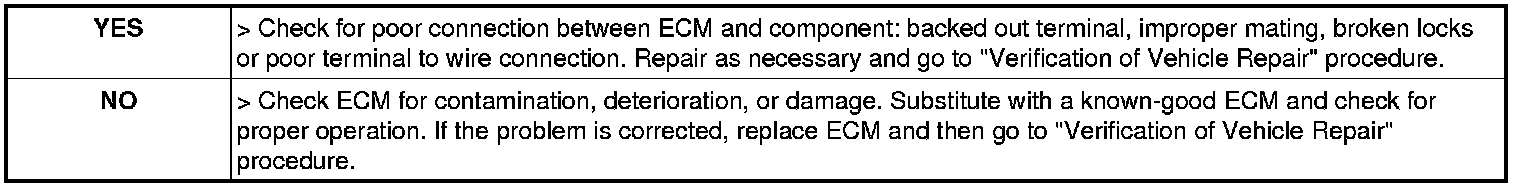

3. Is resistance within the specification ?
