Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect ISCA valve connector
3. Measure resistance between terminals 1 and 2 of the valve connector (Component side)
Specification :

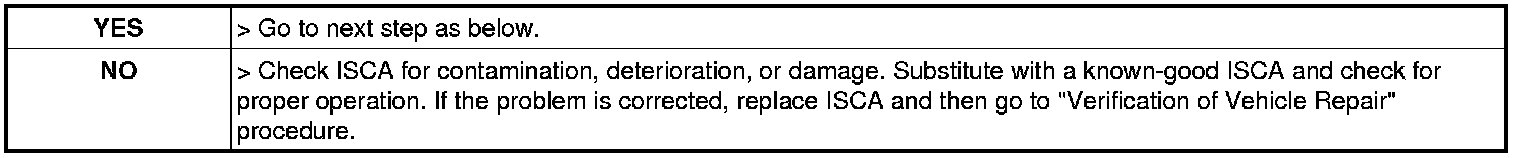

4. Is resistance within the specification ?
