Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

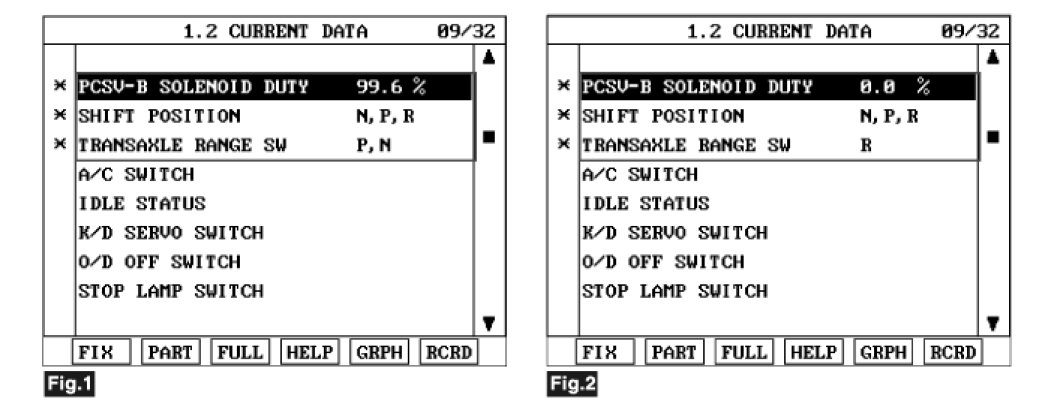

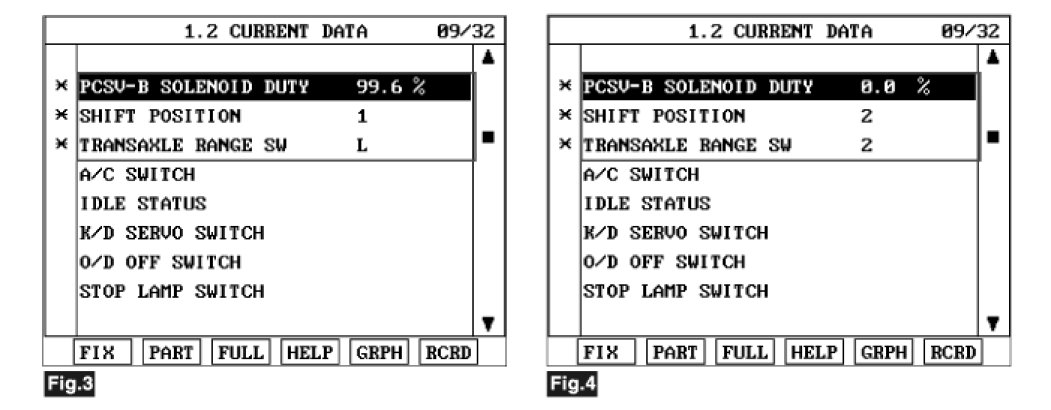

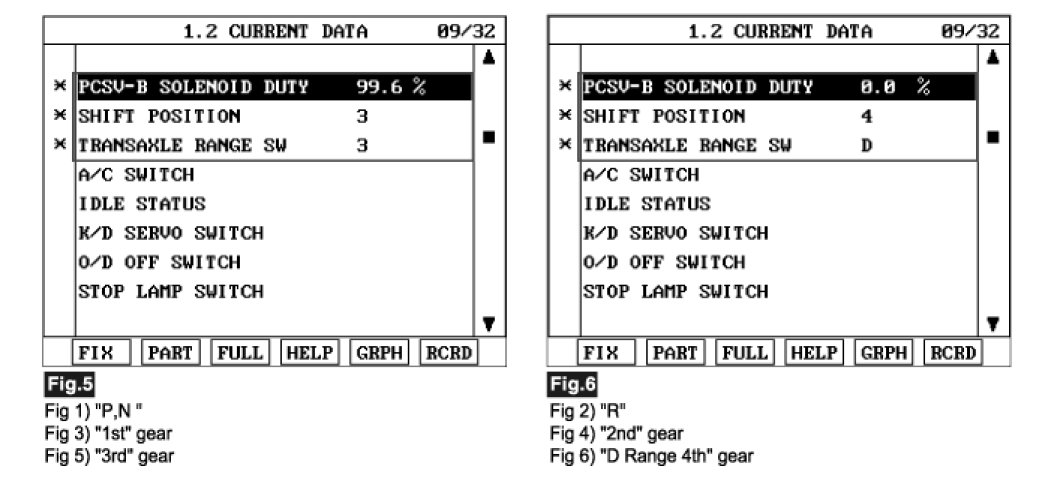

3. Monitor the "PCSV-B (2-4SOLENOID VALVE)" parameter on the scantool
4. Shift gear at each position.












5. Does "PCSV-B (2-4SOLENOID VALVE)" follow the referance data ?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection" procedure
