Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

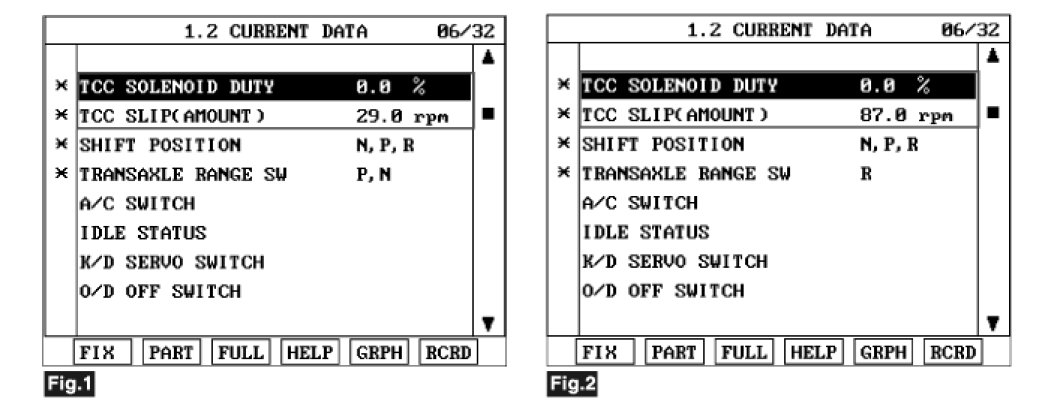

3. Monitor the "TCC SOL. VALVE" parameter on the scantool

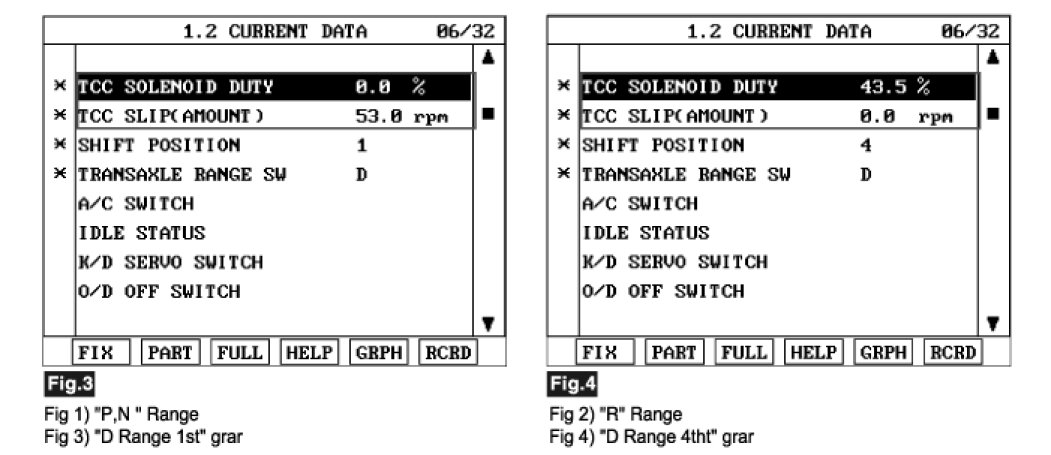

4. Select "D RANGE" and Operate "TCC SOLENOID DUTY" more than 35%








5. Does "TCC SOLENOID DUTY" follow the referance data ?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection" procedure
