Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "TRANSAXLE RANGE SWITCH"

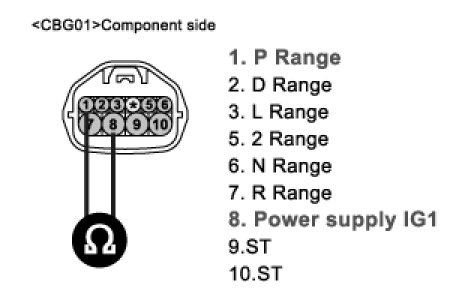

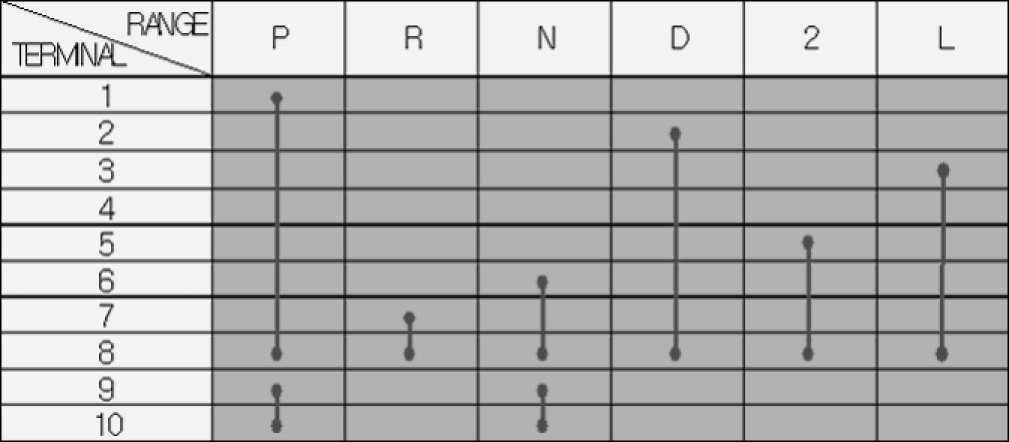

3. Measure continuity (resistance) between each terminals of the sensor
A. Specification : Approx. 0 Ohms








4. Is resistance within specifications ?
YES
1) Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and go to "Verification of Vehicle Repair" procedure.
NO
1) Replace "TRANSAXLE RANGE SWITCH" as necessary and go to "Verification Vehicle Repair" procedure
