Component Inspection

Component Inspection

1. Reconnect FTPS connector
2. Ignition "ON" & Engine "OFF".
3. Measure voltage between terminal 3 of the sensor harness connector and chassis ground (Do not disconnect FTPS harness connector)

Specification : Approx. 23 - 26 Ohms at 20 °C (68 °F)

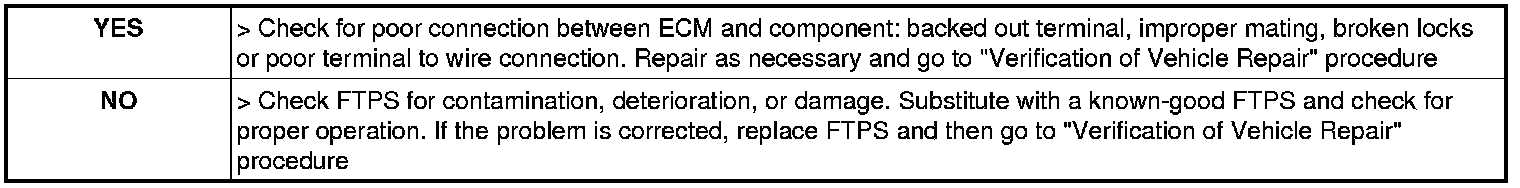

4. Is voltage within the specification ?
