Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect CCV connector

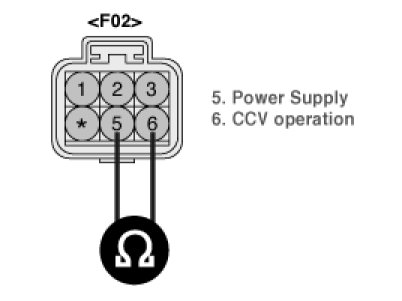

3. Measure resistance between terminals 5 and 6 of the CCV connector (Component side)

Specification : Approx. 23 - 26 Ohms at 20 °C (68 °F)

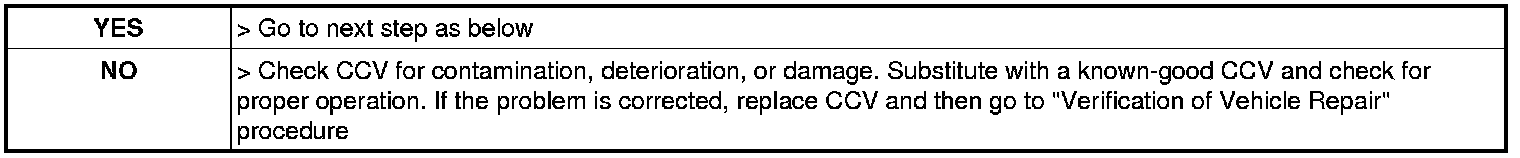

4. Is resistance within the specification ?
