Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector
3. Measure resistance between terminals 1 and 2 of the PCSV connector (Component side)

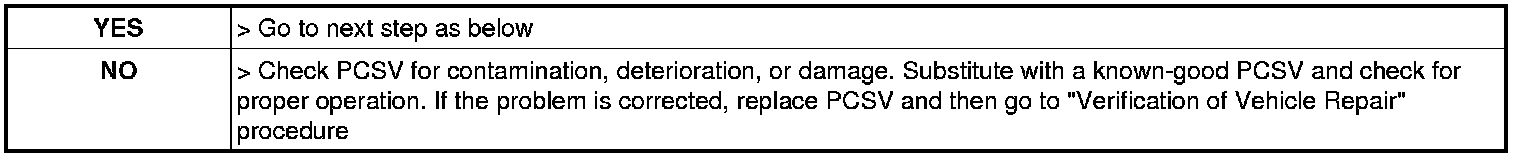

4. Is resistance within the specification ?
