Component Inspection

Component Inspection

1. Component resistance inspection

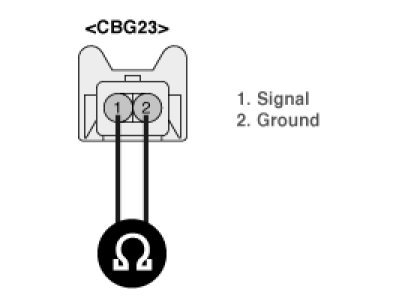

(1) Measure resistance between terminals 1 and 2 of the sensor connector (Component side)

Specification : Approx. 5 MOhms at 20 °C (68 °F)




2. Output signal inspection
(1) Remove knock sensor from vehicle and secure (across mounting boss) in a shop vise.
(2) Set up an oscilloscope as follows :
Channel A (+): terminal 1 (-): terminal 2
(3) Rap on vise with a ball peen hammer while monitoring oscilloscope screen (there should be a spike of less than 1 volt with each hammer strike).

Specification : knock sensor send a voltage spike with hammer strikes.

3. Installation torque inspection
(1) Check the installation torque of the knock sensor.

Specification : Approx. 16 - 28 Nm (160 - 250 kg-cm, 11.8 - 18.4 lb-ft)

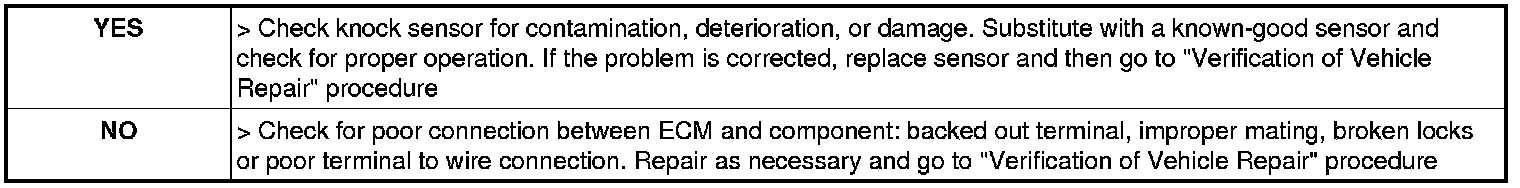

4. Has a problem been found ?
