General Information

Component Location





General Description

The fluid of the CVVT is the engine oil and its density changes according to the engine oil temperature. At this time the Oil Temperature Sensor (OTS) helps compensation against the temperature differences. The Oil Temperature Sensor measures the engine oil temperature before the engine oil comes into the Oil-flow Control Valve (OCV).According to the measured temperature, the Engine Control Module (ECM) compensates the oil-flow control valve operation time.

DTC Description

ECM sets DTC P0197 if the ECM detects signal voltage lower than the possible range of a properly operating OTS.

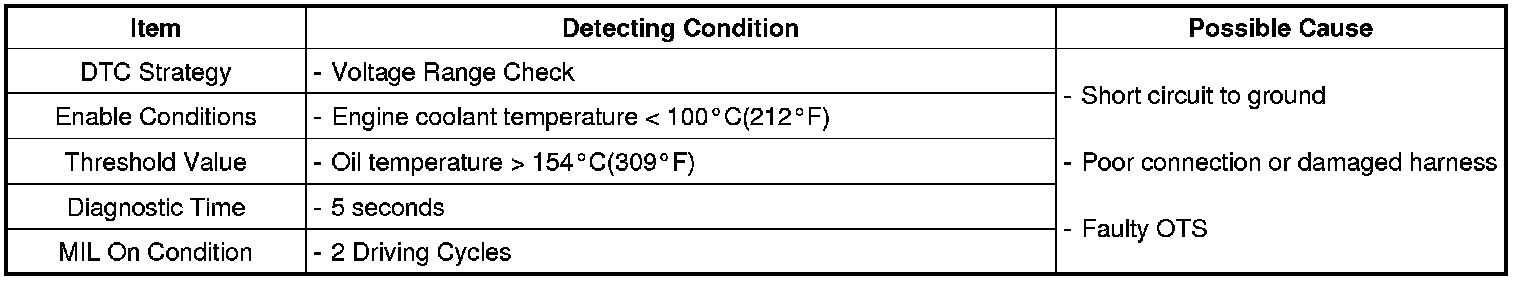

DTC Detecting Condition

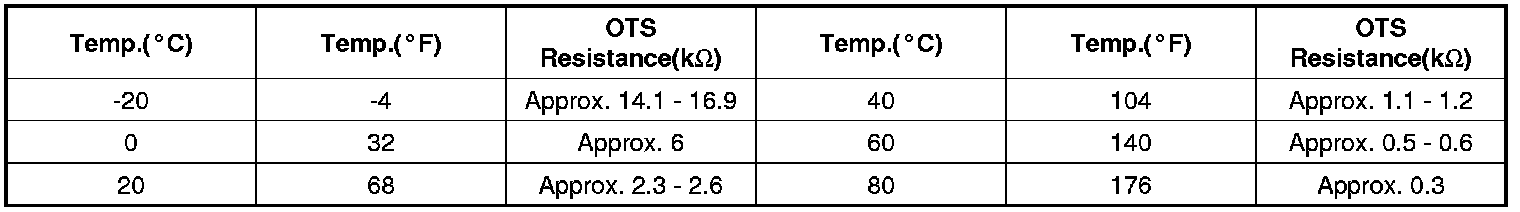

Specification





Schematic Diagram
