Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect OTS connector.

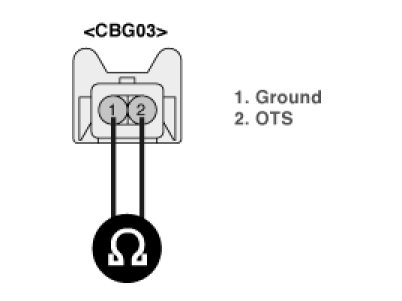

3. Measure resistance between terminals 1 and 2 of OTS connector. (Component side)

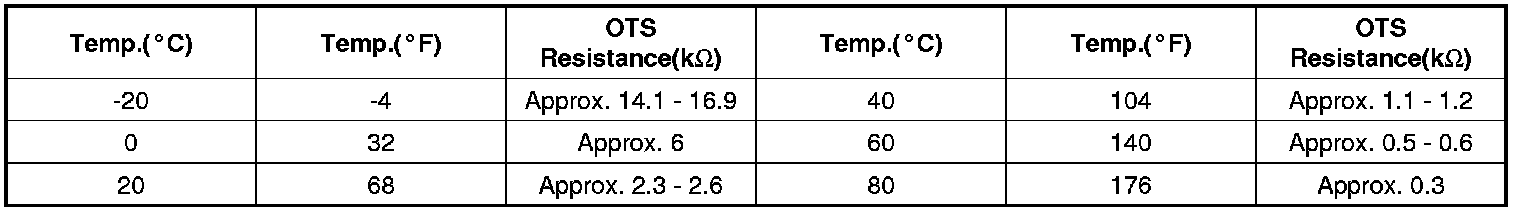

Specification :

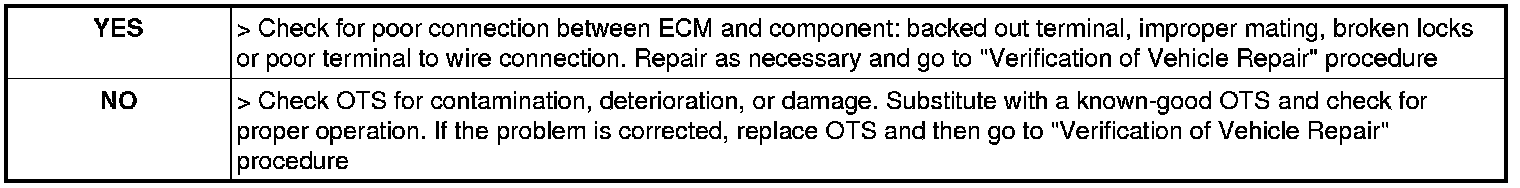

4. Is resistance within specification ?
