Component Inspection





Component Inspection

1. Engine "ON"
2. Install Scantool and monitor the "MASS AIR FLOW (V)" parameter on the Scantool data list.

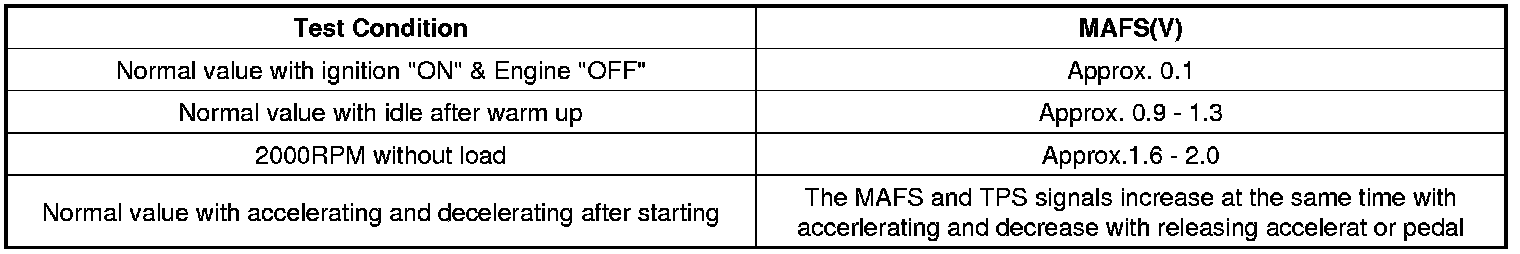

Specification :

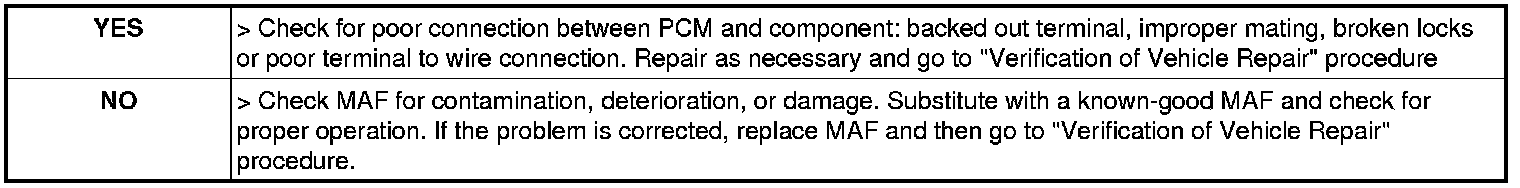

3. Is MAF sensor voltage within the specification ?
