Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect oil control valve connector

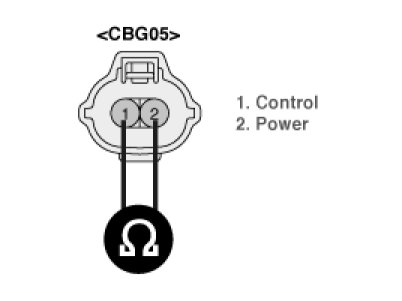

3. Measure resistance between terminals 1 and 2 of the solenoid connector (Component side).

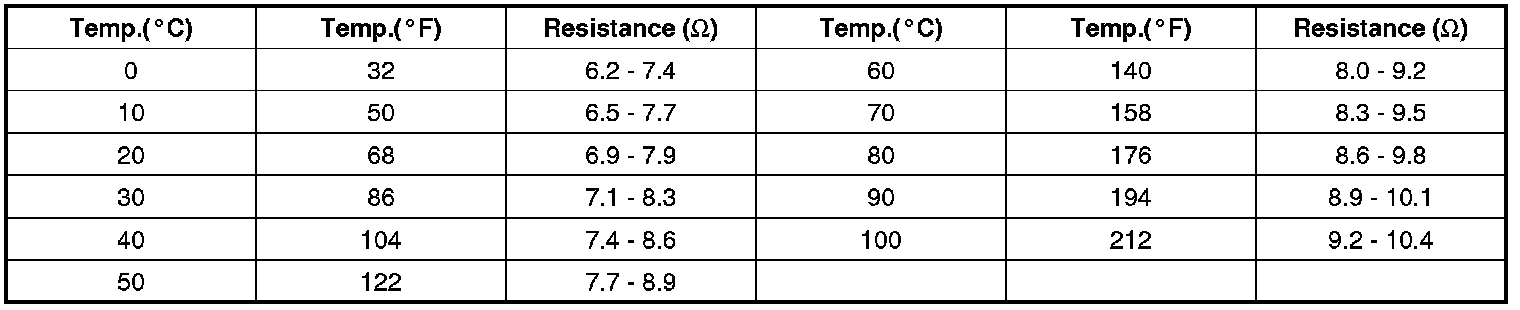

Specification :

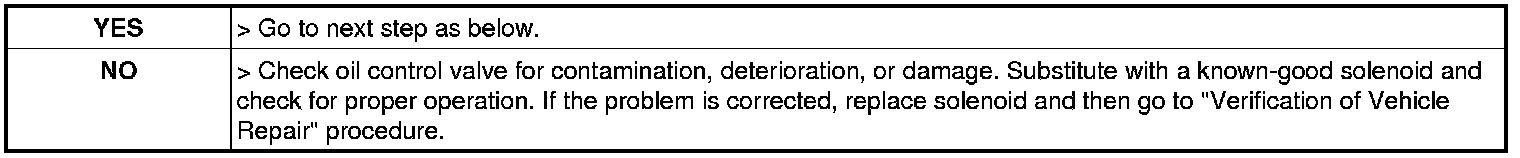

4. Is resistance within specification ?
