Component Inspection





Component Inspection

1. Ignition "OFF"

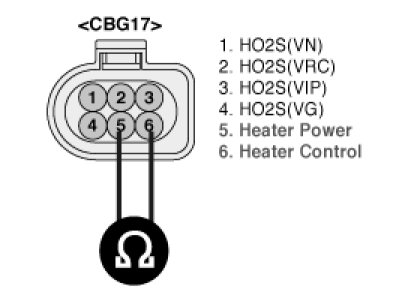

2. Measure resistance between terminals 5 and 6 of the sensor connector (Component side).

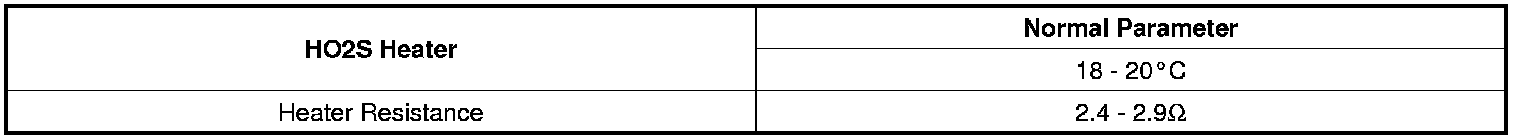

Specification :

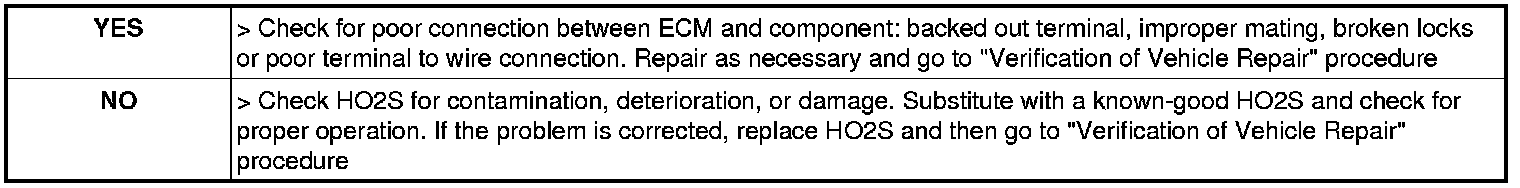

3. Is HO2S heater resistance display near the specified value ?
