Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Engine Control System

Engine Control System

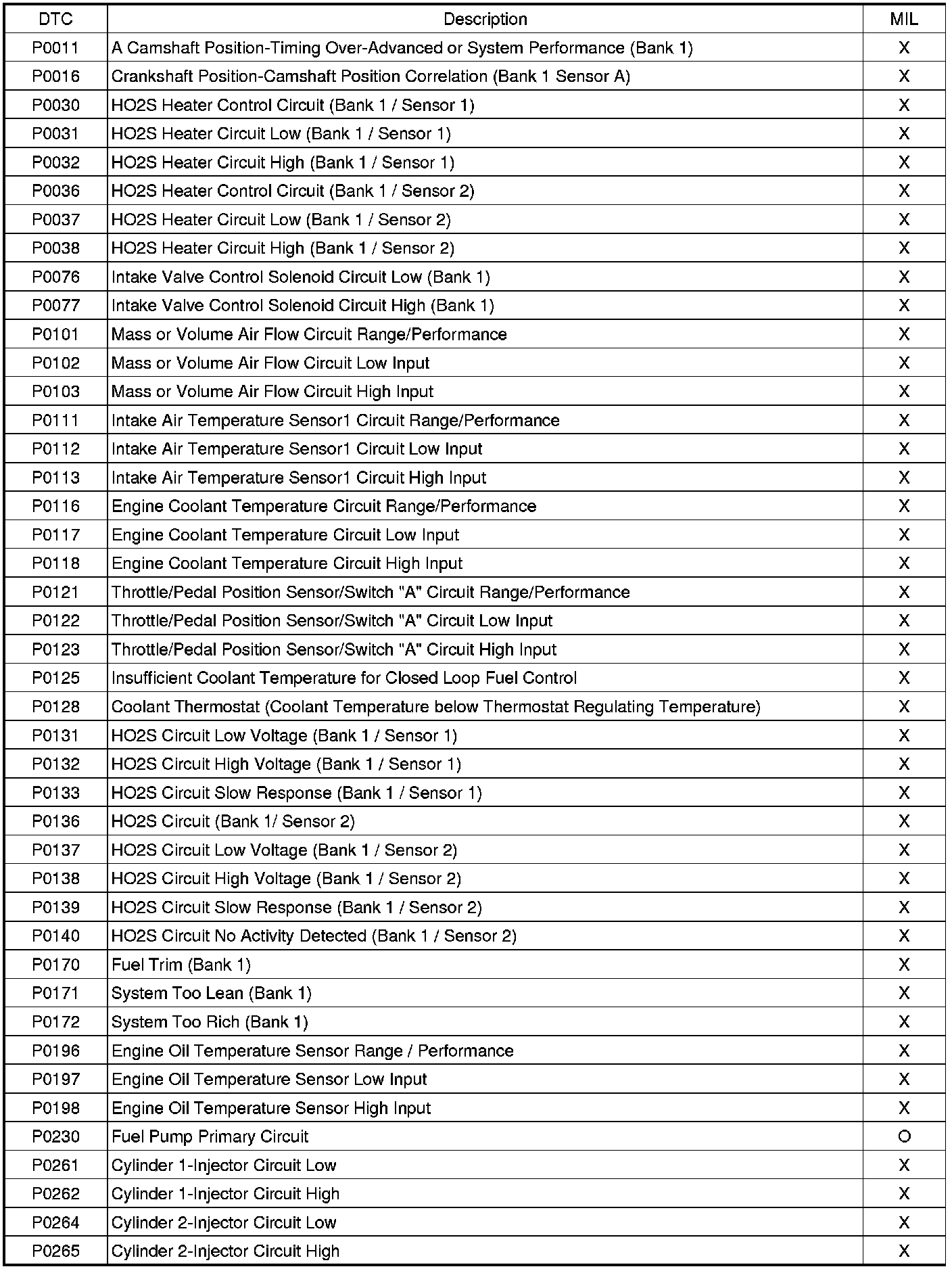

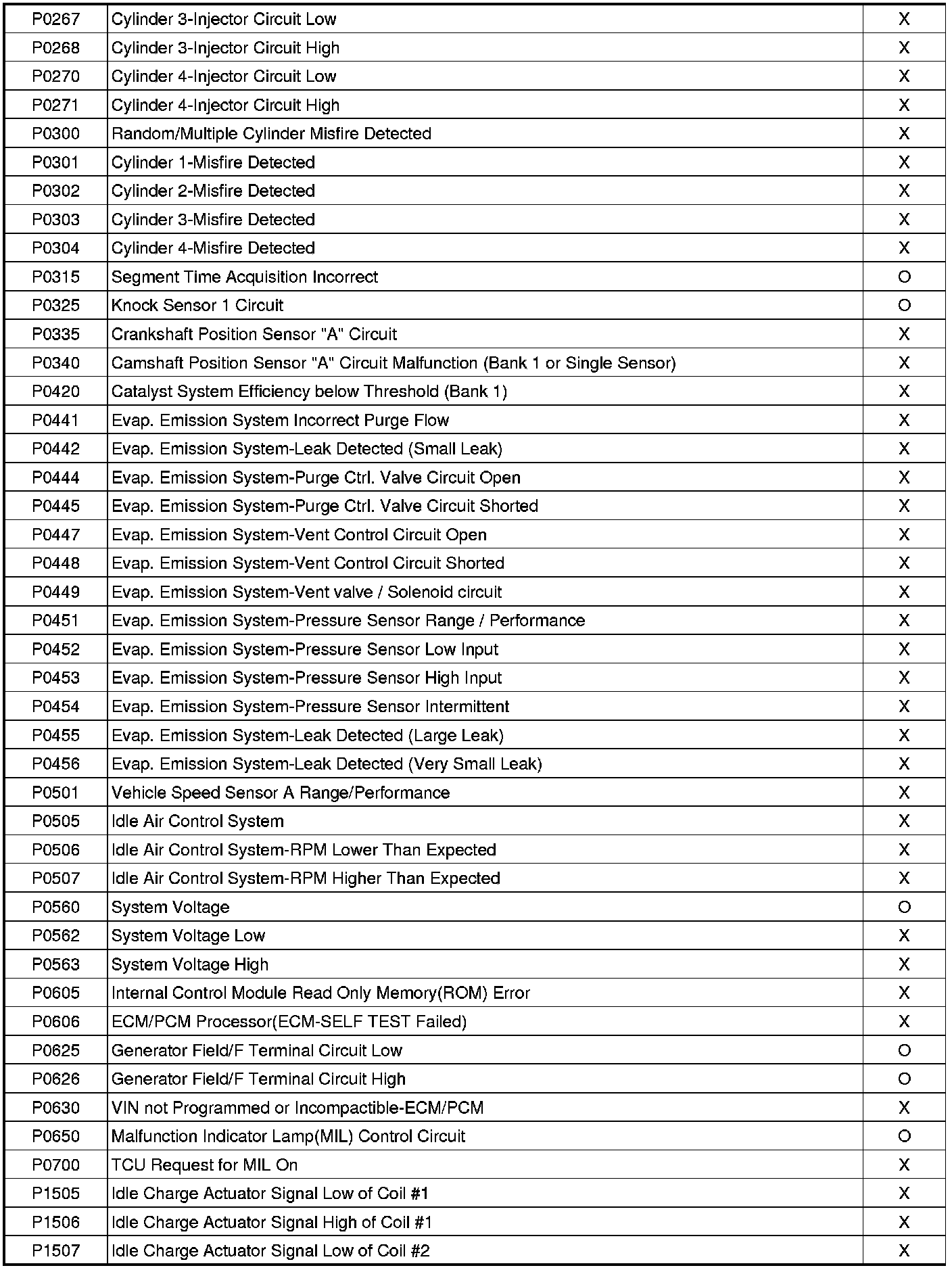

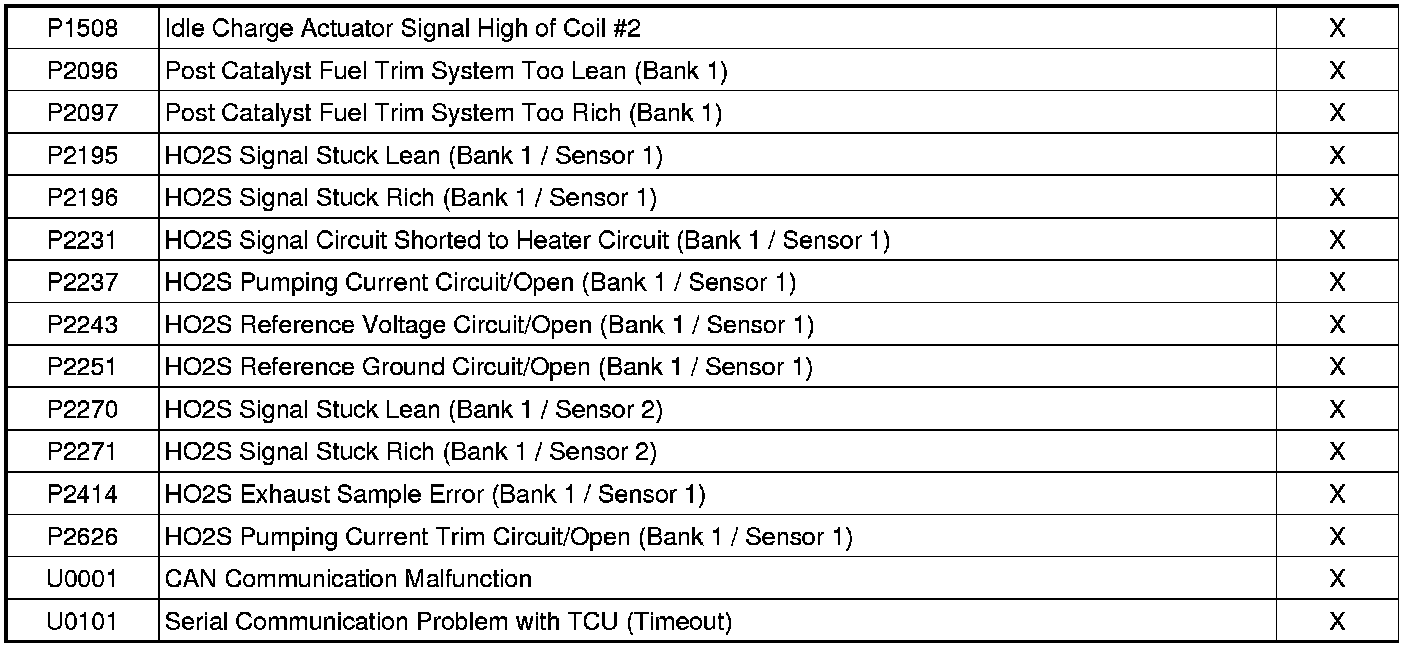

Inspection Chart For Diagnostic Trouble Codes (DTC)













NOTE:
X: MIL ON & MEMORY
O: MIL OFF & MEMORY
