General Information

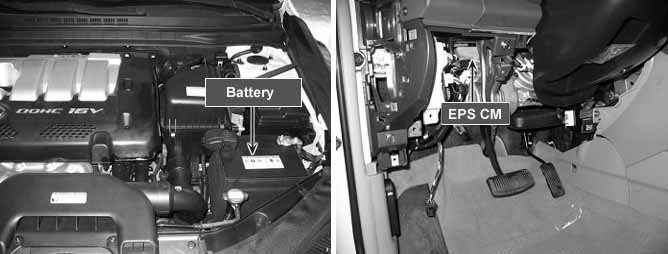

Component Location





General Description

EPS uses an electric motor to provide directional control to the driver. EPS CM has a charging circuit to supply current to a motor temporarily.

DTC Description

EPS CM sets this code and turns on warning lamp if charged voltage is too low due to a abnormal charging circuit. At that time EPS CM inhibits it's own function.

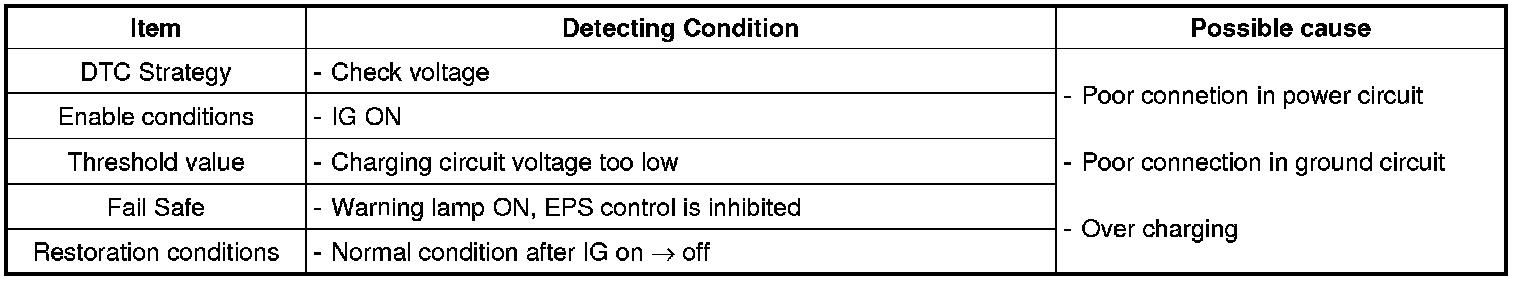

DTC Detecting Condition





Specification





Schematic Diagram
