Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "MOTOR TEMPERATURE" parameters on the Scantool.

Specification : Less than 85 °C (185 °F)

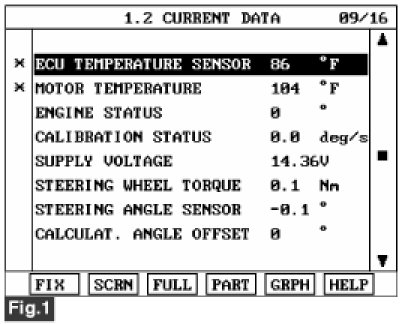

Fig.1) Normal data (IG ON & ENG ON)

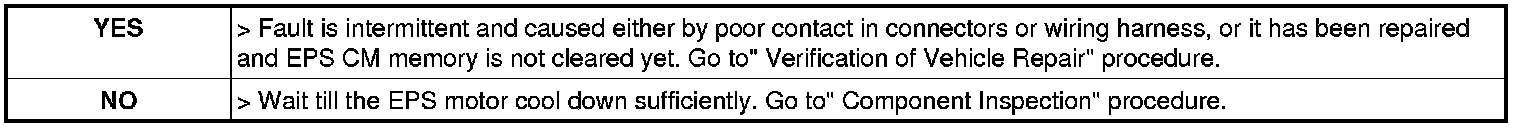

4. Is the measured "Motor Temperature" within specifications?
