Monitor Scantool data





Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Press the brake pedal.

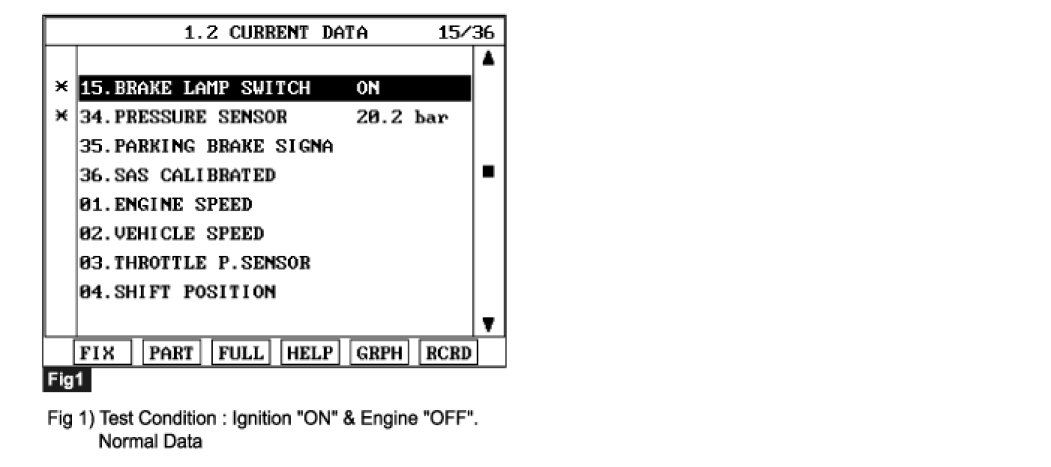

4. Monitor the "BRAKE SWITCH" parameter on the scantool.

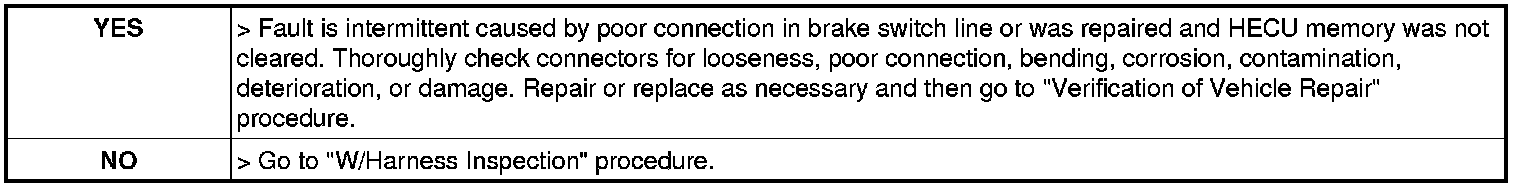

5. Whenever brake pedal is pushed down, is the brake switch's scantool data changed ON/OFF?
