Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect brake switch connector.

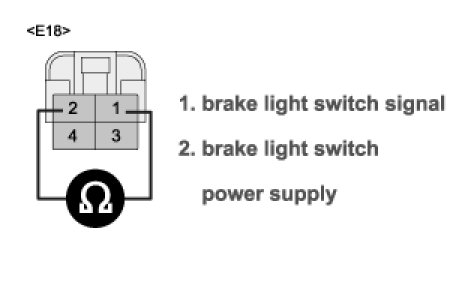

3. Measure resistance between the terminal "1", "2" of the brake switch.

Specification : Resistance between the terminal "1,2" of the brake switch - Infinity Ohms (when the plunger is pushed down), 0 Ohms (when the plunger isn't pushed down).

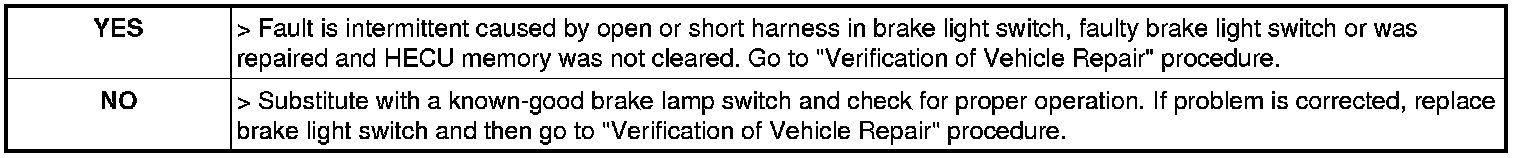

4. Is the measured voltage within specifications?
