Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Press the ESC SWITCH.

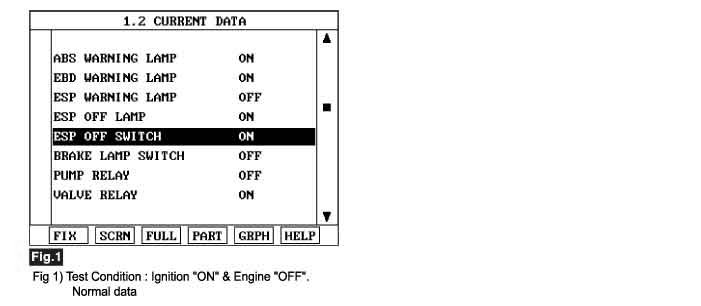

4. Monitor the "ESC SWITCH" parameter on the scantool.

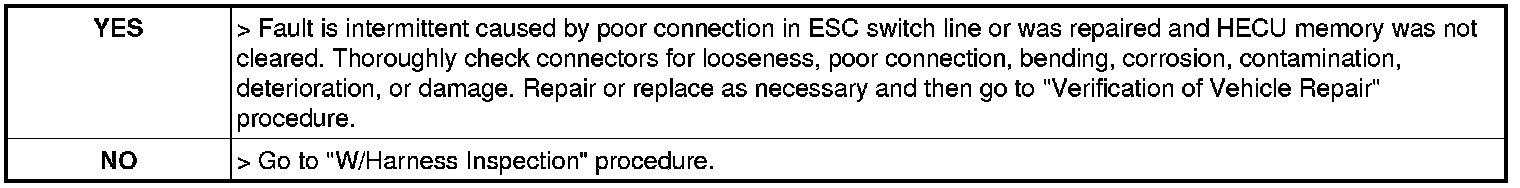

5. Whenever the switch is pushed up/down, is the ESC off switch's scantool data changed ON/OFF?
