Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Turn the steering wheel to the left or right.
4. Monitor the "Torque Sensor" parameters on the Scantool.




Fig.1) Normal data (IG ON & ENG ON)

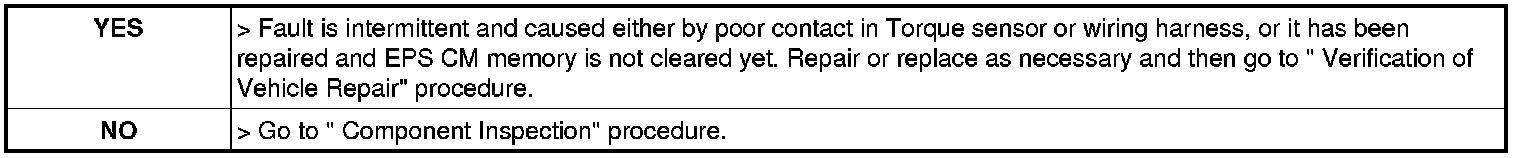

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?
