Monitor Scantool data





Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".

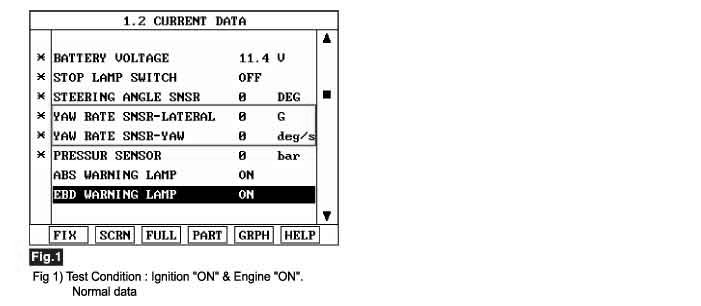

3. Monitor the "Yaw rate sensor-lateral&Yaw rate sensor-yaw" parameter on the Scantool.

Specification : Lateral G sensor : ± 0G, YAW rate Sensor : ± 0 deg/s

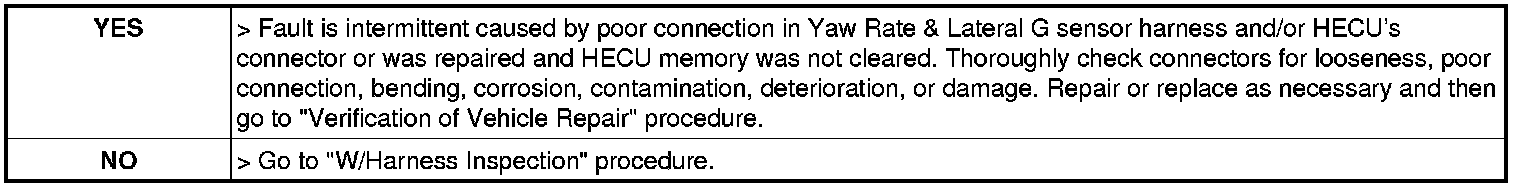

4. Is parameter displayed within specifications?
