Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

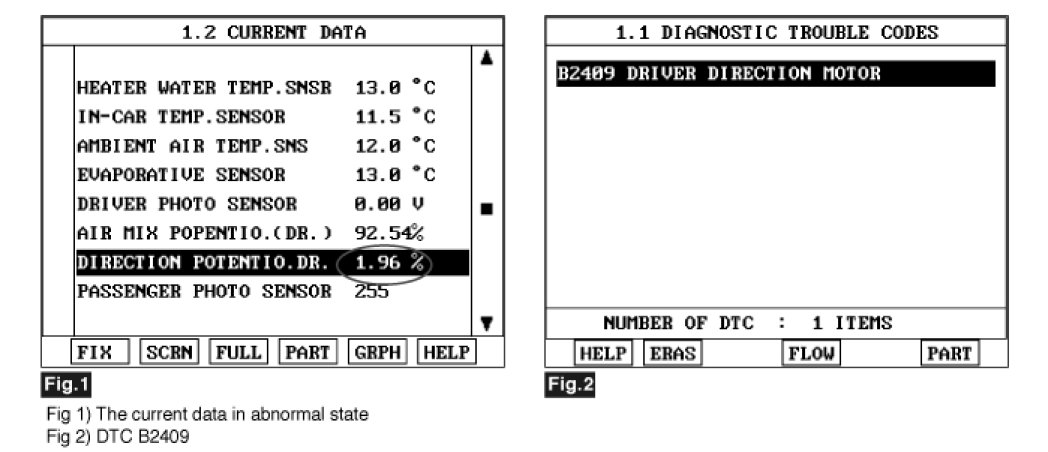

3. Monitor the "DR DIRECTION POTENTIO" parameter on the scantool. While operating mode switch.

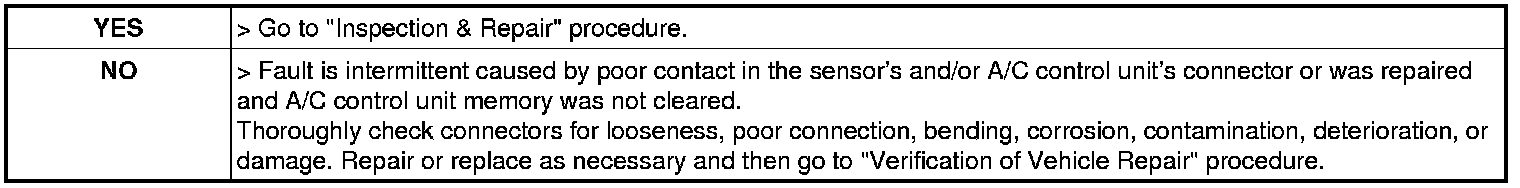

4. Are the DTC B2409 present and is parameter of "DR DIRECTION POTENTIO" fixed ?

NOTE:
** There is any fault in DR Direction Motor. If the parameter of "DR DIRECTION POTENTIO" is 10% or less on "VENT" mode, or If the parameter is 90% or more on "DEF" mode.
