Monitor Scantool Data





Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

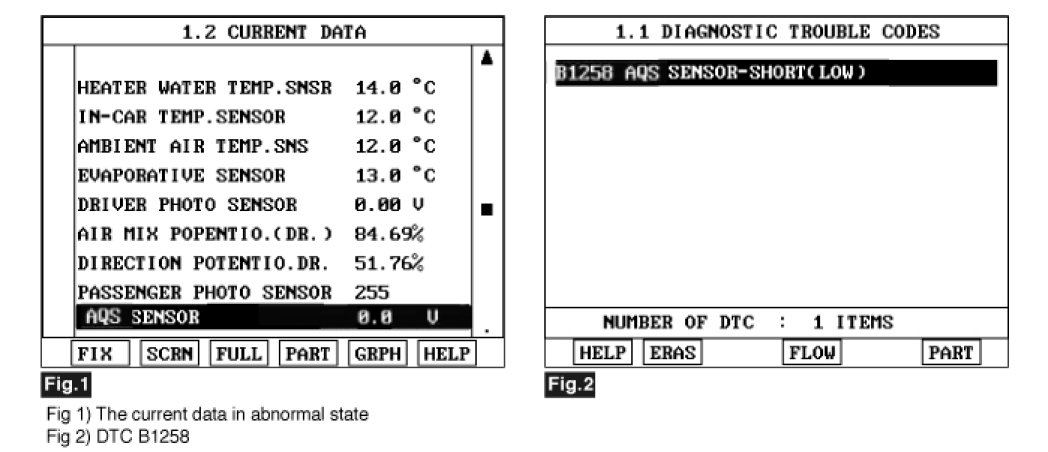

3. Monitor the "AQS sensor" Parameter on the Scantool. While making hazardous gas such as tobacco fumes around the AQS sensor.

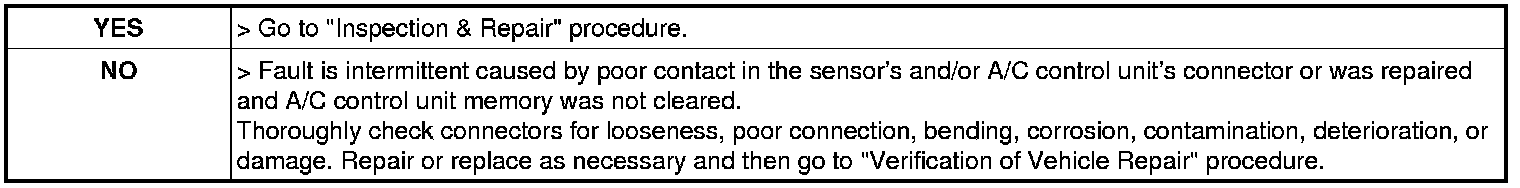

4. Are the DTC B1258 present and is parameter of "AQS sensor" fixed ?
