Component Inspection

Component Inspection

Check Ambient sensor
1. Engine "ON".
2. Connect AQS sensor.

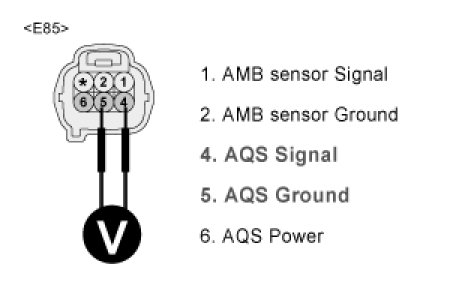

3. Measure voltage value between terminal "4" and "5" of AQS sensor.

Specification : Refer the specifications in fig 3)




Fig.3)

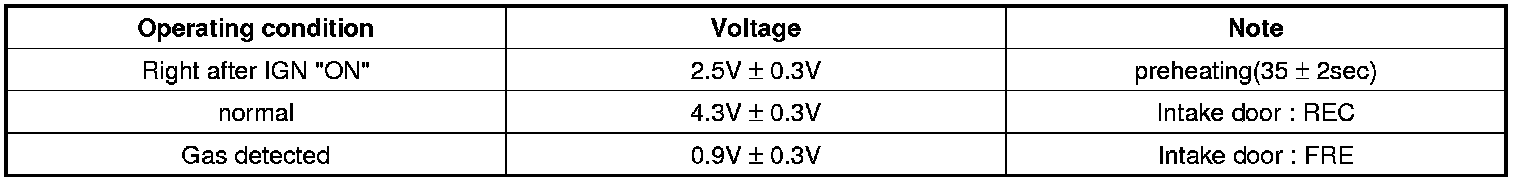

Fig.3) Specifications : Voltage value of AQS sensor as a function of position of operating condition.

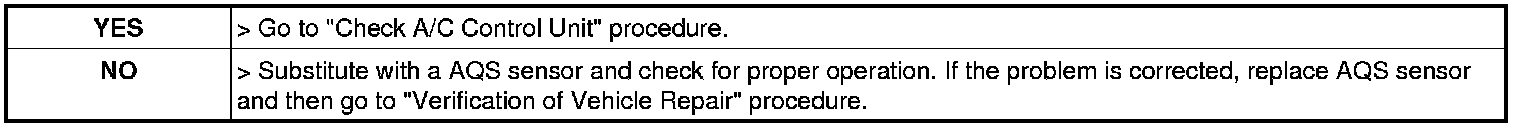

4. Is the measured voltage within specifications in fig 3) ?





Check A/C Control Unit
1. Engine : "ON"
2. Disconnect AQS sensor.

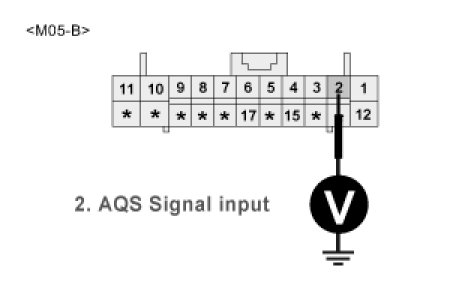

3. Measure voltage between terminal "2" of A/C Control Unit and chassis ground

Specification : Approx. 5V

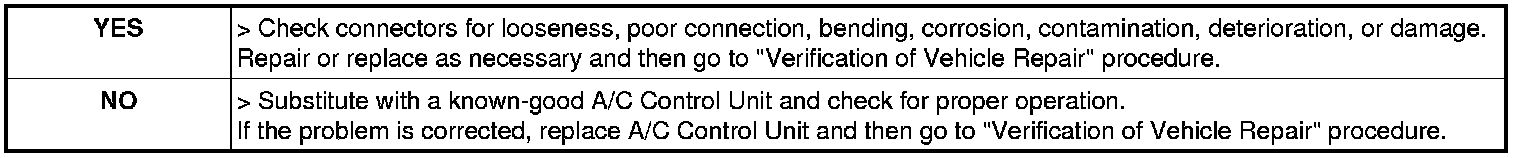

4. Is the measured voltage within specifications ?
