Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

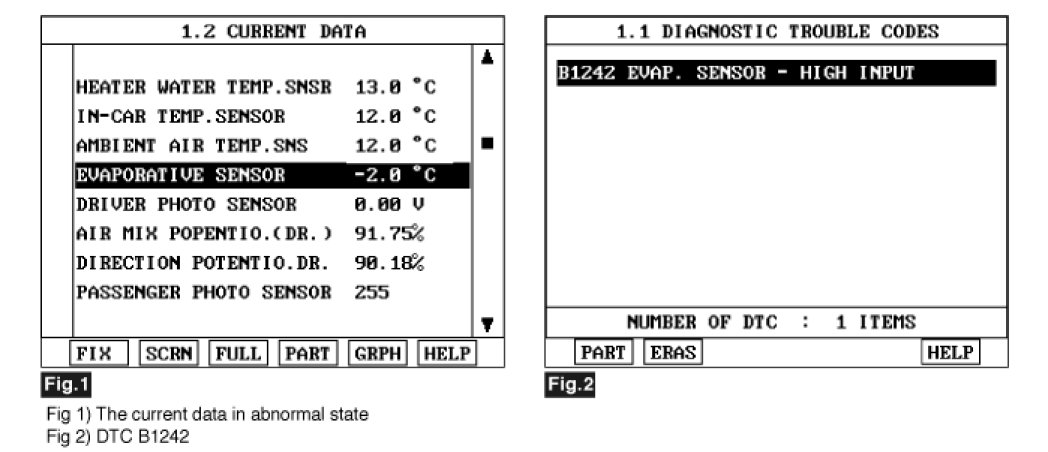

3. Monitor the "EVAPORATIVE SENSOR" Parameter on the Scantool.

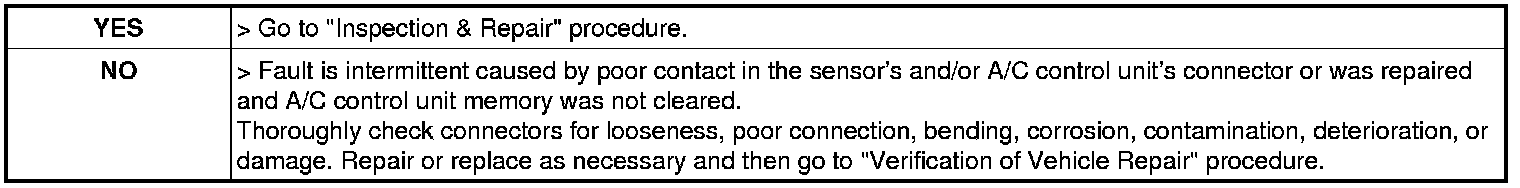

4. Are the DTC B1242 present and is parameter of "EVAPORATIVE SENSOR" fixed ?

NOTE:
** Parameter of "EVAPORATIVE SENSOR" will be fixed at -2 °C, if there is any fault in EVAPORATIVE SENSOR.
