Component Inspection

Component Inspection

Check evaporator sensor
1. Ignition "OFF"
2. Disconnect evaporator sensor.

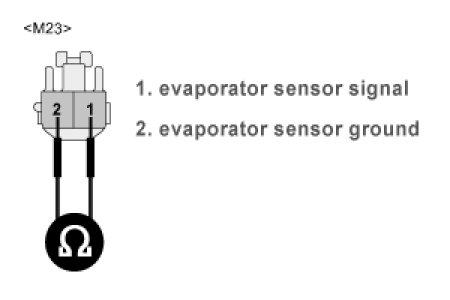

3. Measure resistance between terminal "1" and "2" of evaporator sensor.

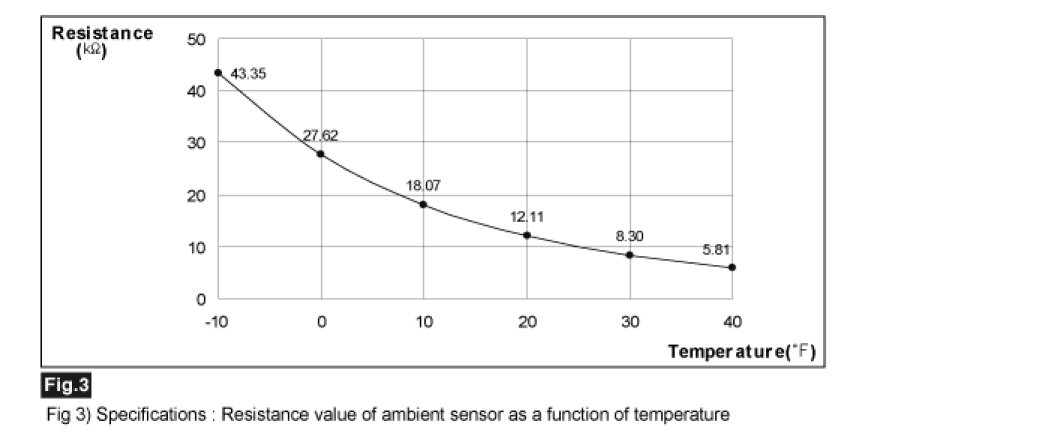

Specification : Refer the specifications in fig 3)

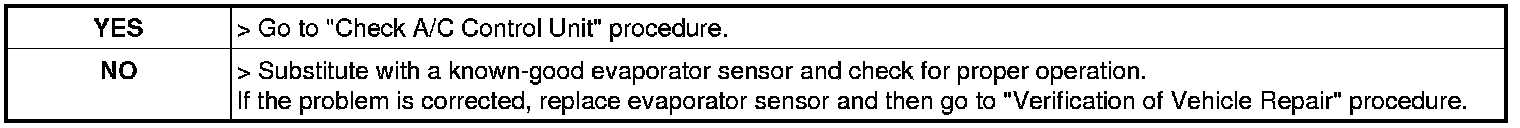

4. Is the measured resistance within specifications in fig 3) ? (tolerance limits ± 3%)
