Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

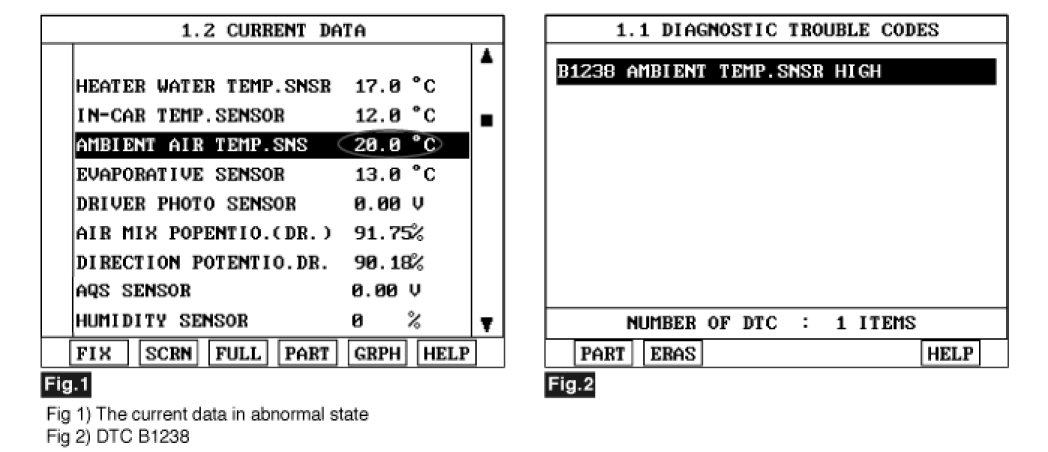

3. Monitor the "AMBIENT TEMP.SENSOR" Parameter on the Scantool.

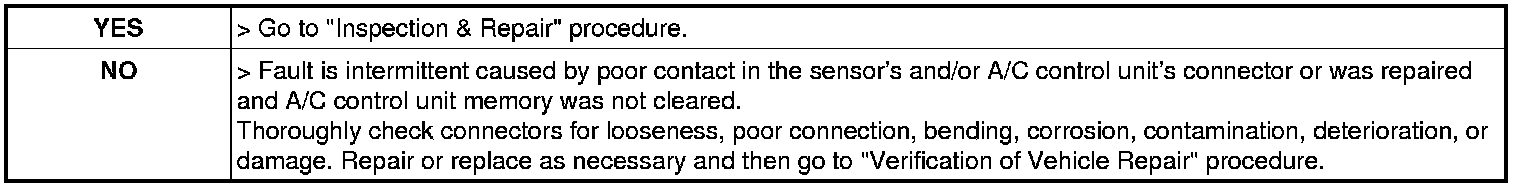

4. Are the DTC B1238 present and is parameter of "AMBIENT TEMP.SENSOR" fixed ?

NOTE:
** Parameter of "AMBIENT TEMP.SENSOR" will be fixed at 20 °C, if there is any fault in AMBIENT TEMP.SENSOR.
