Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

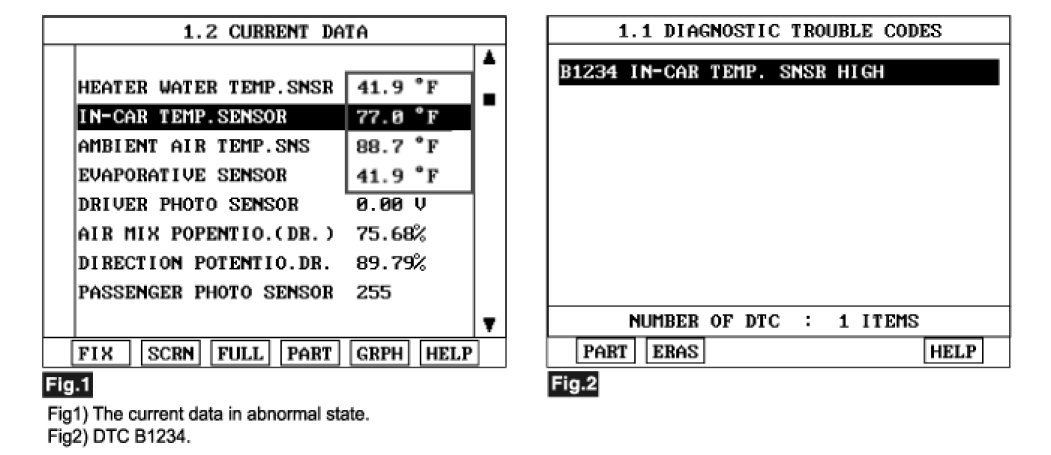

3. Monitor the "INCAR TEMP.SENSOR" Parameter on the Scantool.

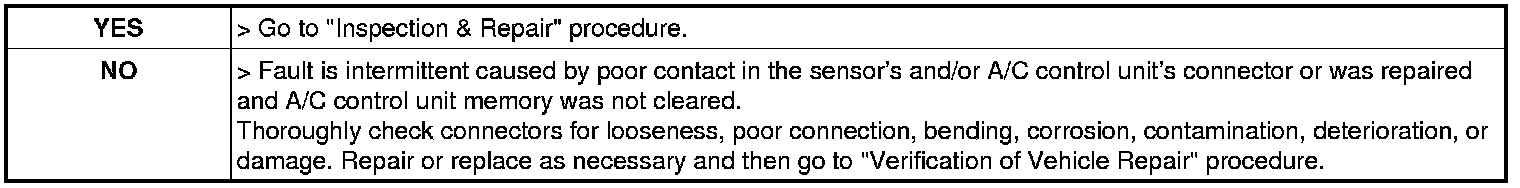

4. Are the DTC B1234 present and is parameter of "INCAR TEMP.SENSOR" fixed ?

NOTE:
** Parameter of "INCAR TEMP.SENSOR" will be fixed at 77 °F, if there is any fault in INCAR SENSOR.
