Component Inspection

Component Inspection

Check Incar Temp. sensor
1. Ignition "OFF".
2. Disconnect incar sensor.
3. Measure resistance between terminal "4" and "2" of incar sensor.

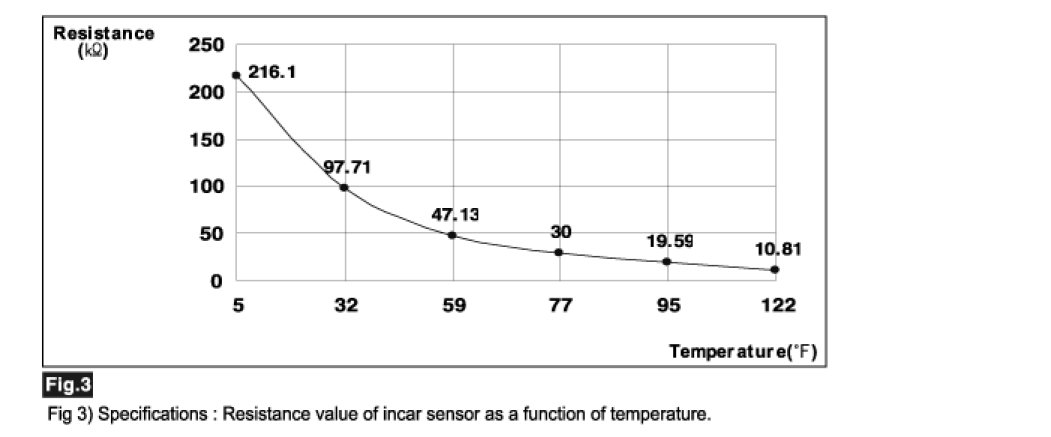

Specification : Refer the specifications in fig 3)

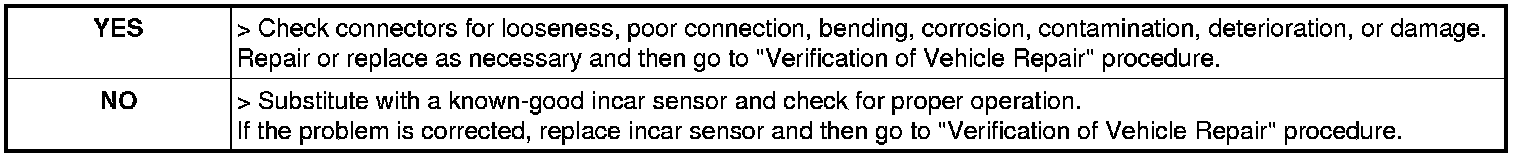

4. Is the measured resistance within specifications in fig 3) ? (tolerance limits ± 3%)
