Check Incar Temp. sensor
1. Ignition "OFF".
2. Disconnect incar sensor.

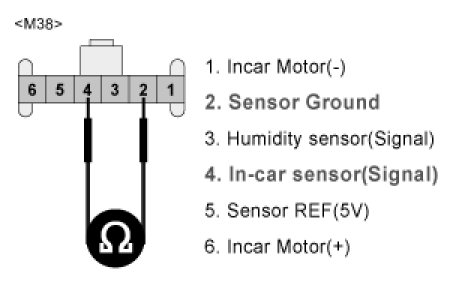

3. Measure resistance between terminal "4" and "2" of incar sensor.

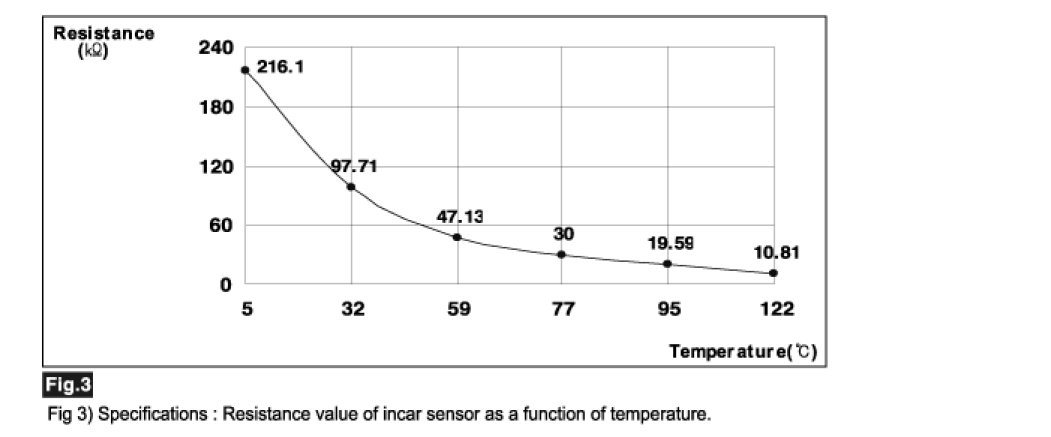

Specification : Refer the specifications in fig 3)








4. Is the measured resistance within specifications in fig 3) ? (tolerance limits ± 3%)





Check A/C Control Unit
1. Engine "ON".
2. Disconnect incar sensor.

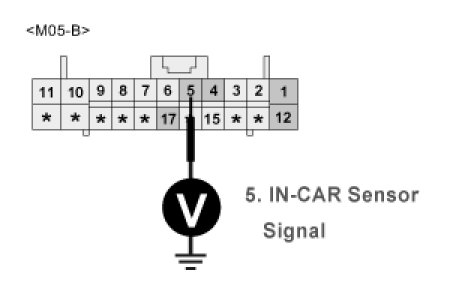

3. Measure Voltage between terminal "5" of A/C Control Unit and chassis ground.

Specification : Approx. 5V




4. Is the measured voltage within specifications ?
