Front Wheel Speed Sensor

FRONT WHEEL SPEED SENSOR

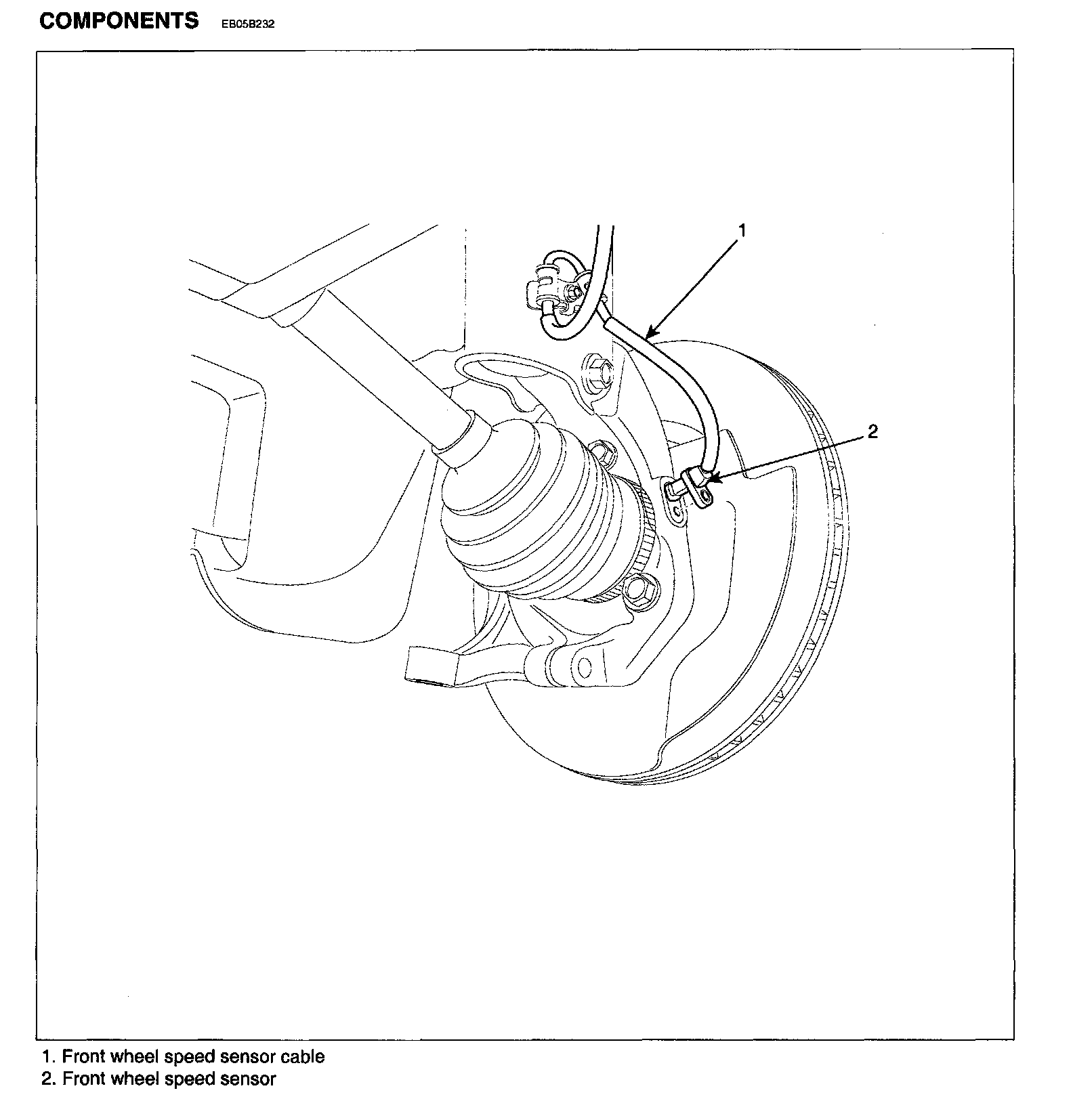

COMPONENTS:

REMOVAL
1. Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).





2. Remove the wire bracket bolt (A).





3. Remove the front wheel guard.
4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
