Power Seat Switch: Testing and Inspection
POWER SEAT SWITCH
INSPECTION

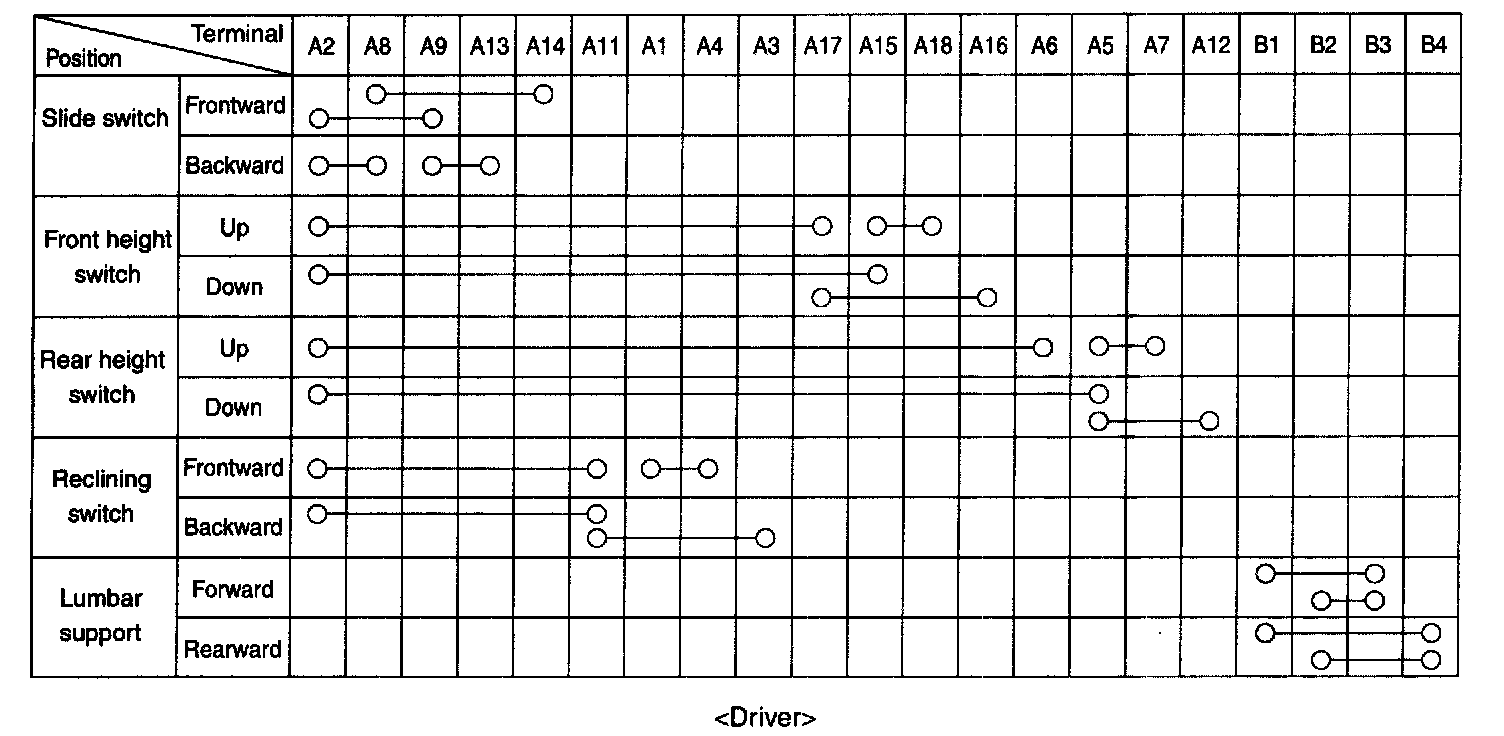

With the power seat switch in each position, make sure that continuity exists between the terminals given above. If continuity is not as specified, replace the power seat switch.
INSPECTION
With the power seat switch in each position, make sure that continuity exists between the terminals given above. If continuity is not as specified, replace the power seat switch.
