Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Camshaft, Lifters and Push Rods >> Variable Valve Timing Actuator >> Locations

Variable Valve Timing Actuator: Locations

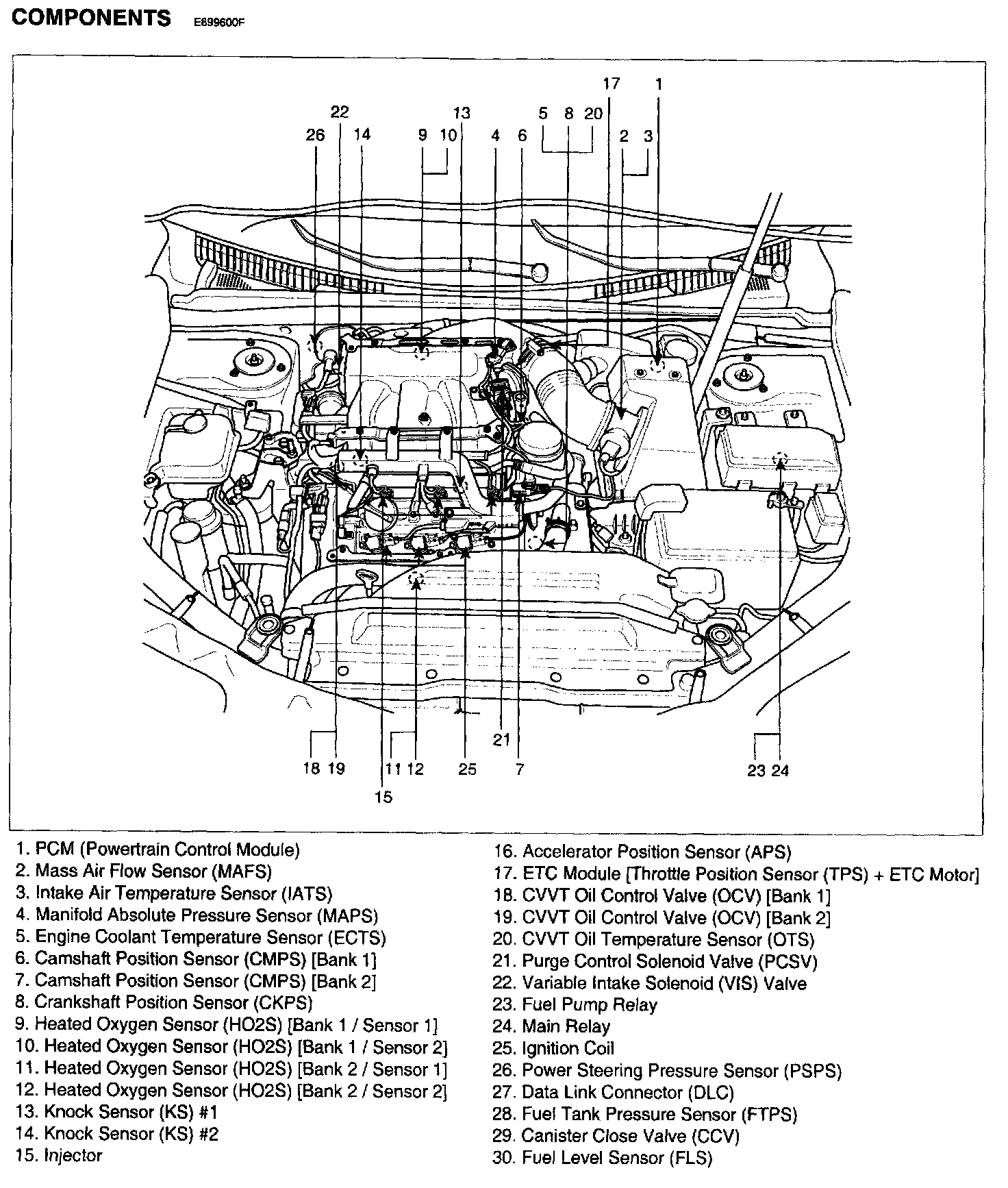

Gasoline Engine Control System Components:
