Home >> Hyundai >> 2007 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Evaporative Emissions System >> Evaporative and ORVR Emission Control System

Evaporative and ORVR Emission Control System

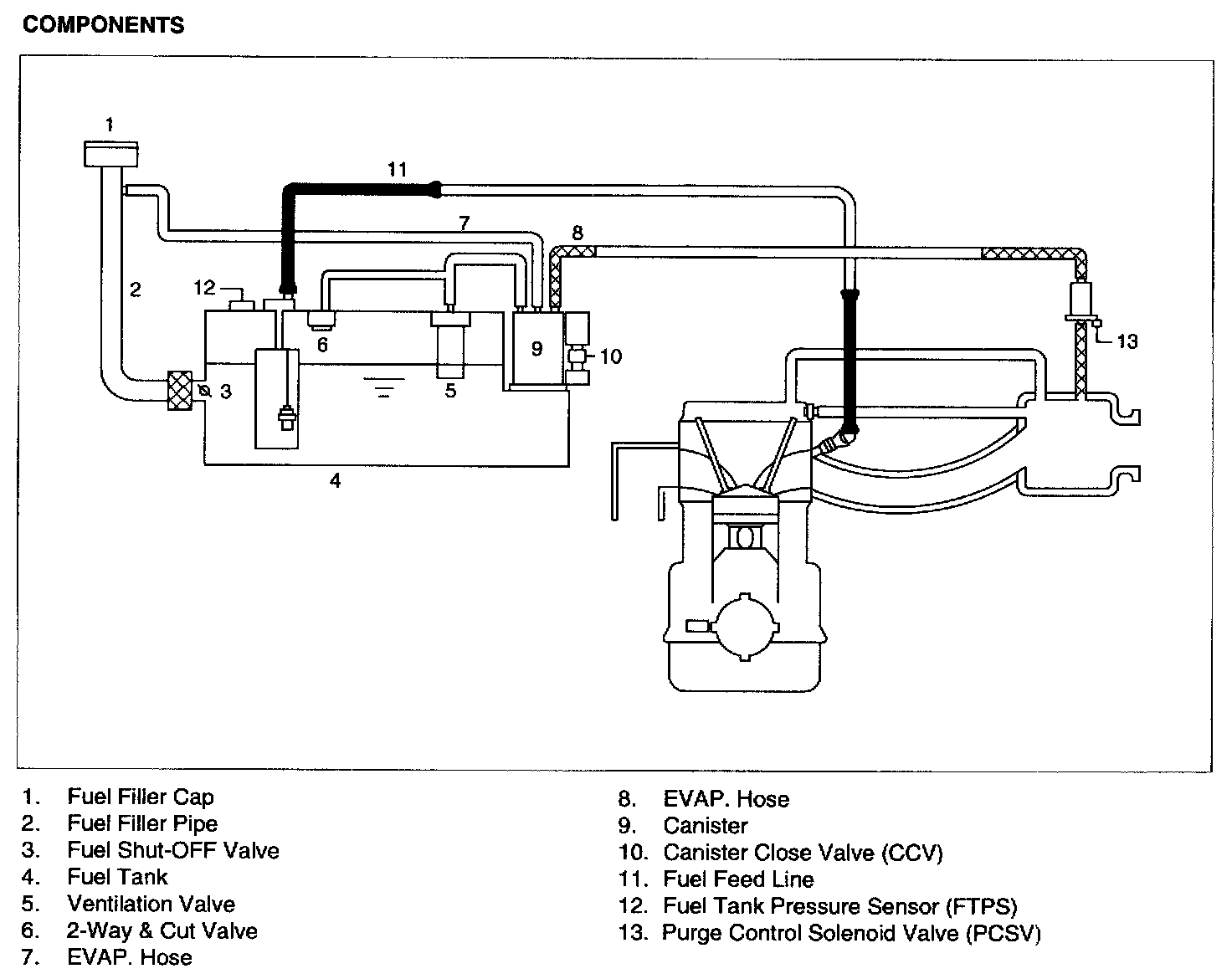

Evaporative And ORVR Emission Control System Components:
