Evaporative Emission Control System
Evaporative Emission Control System

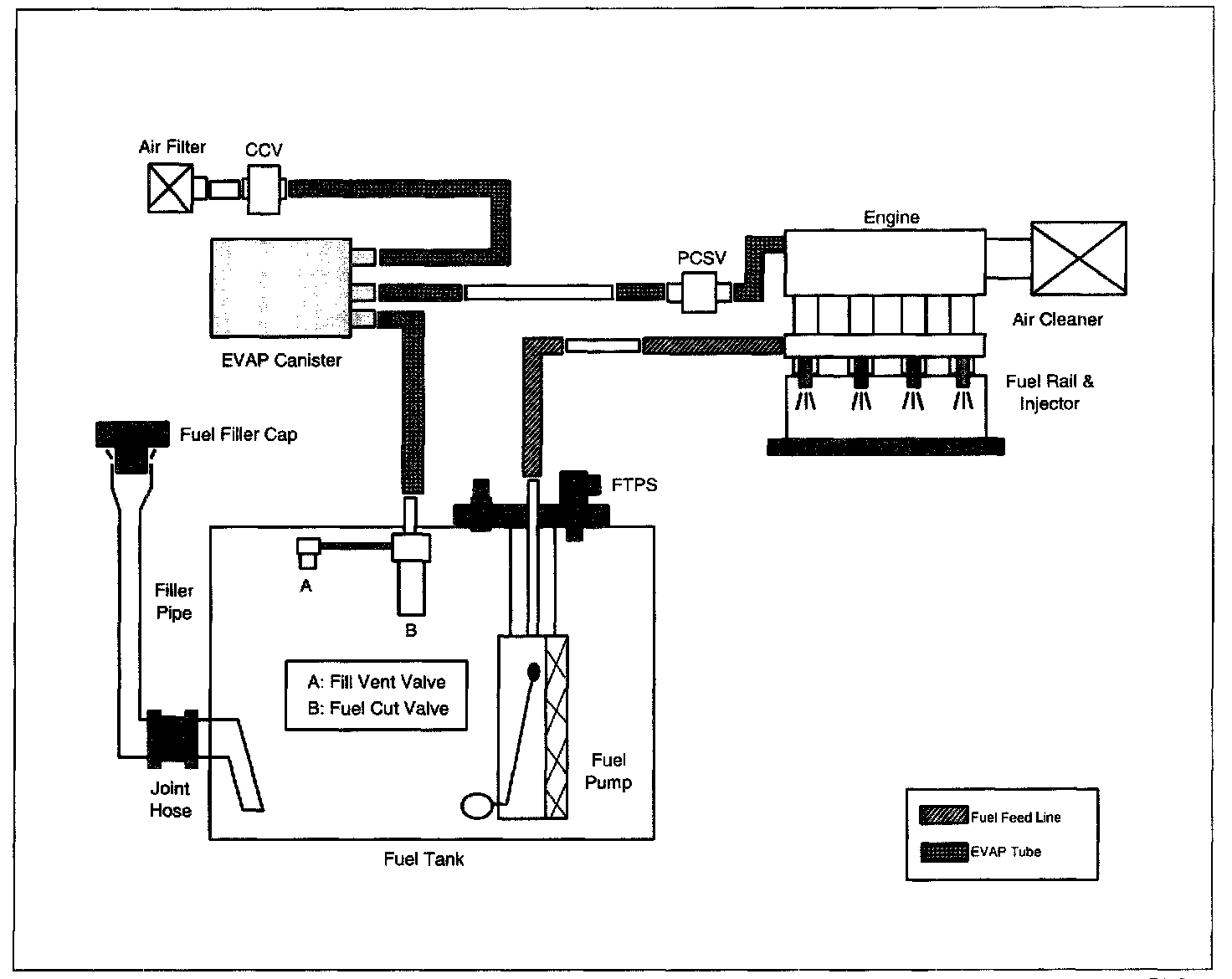

Evaporative Emission Control System Description:
