B. NF Sonata - 08MY VS. 09MY Part Numbers

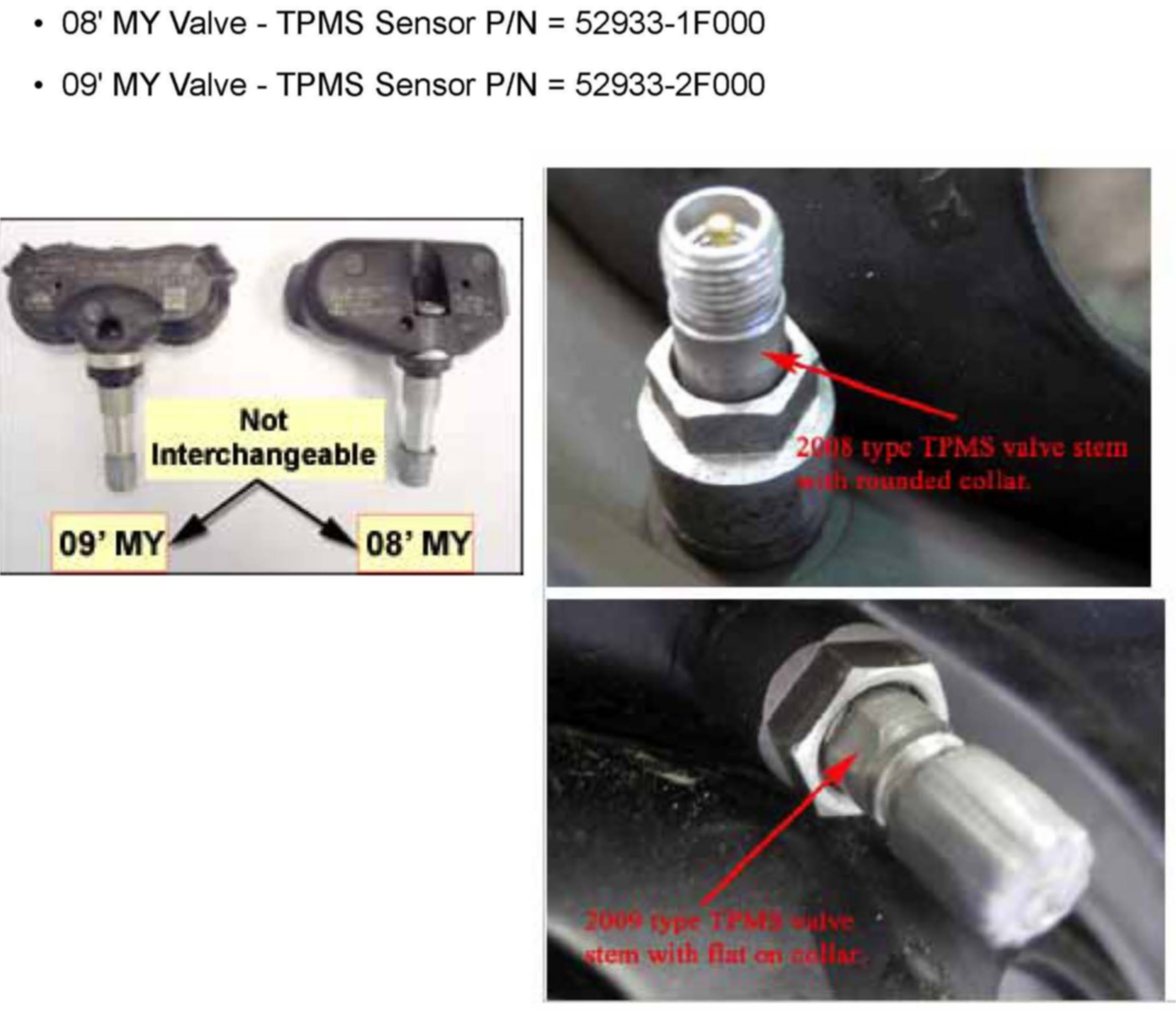

b. NF Sonata TPMS Sensors: 2008 vs. 2009 model year Part Number Change





Confirm that the vehicle is equipped with TPMS and verify that the replacement sensor service part is the correct application for the model year of the vehicle and is in 'Low Normal' mode when installing onto the vehicle (for example, an 08 MY Sonata TPMS sensor is not interchangeable with the 09 MY Sonata TPMS sensor). Please verify the applicable MY part number as shown above.
