Removal

REAR STRUT ASSEMBLY

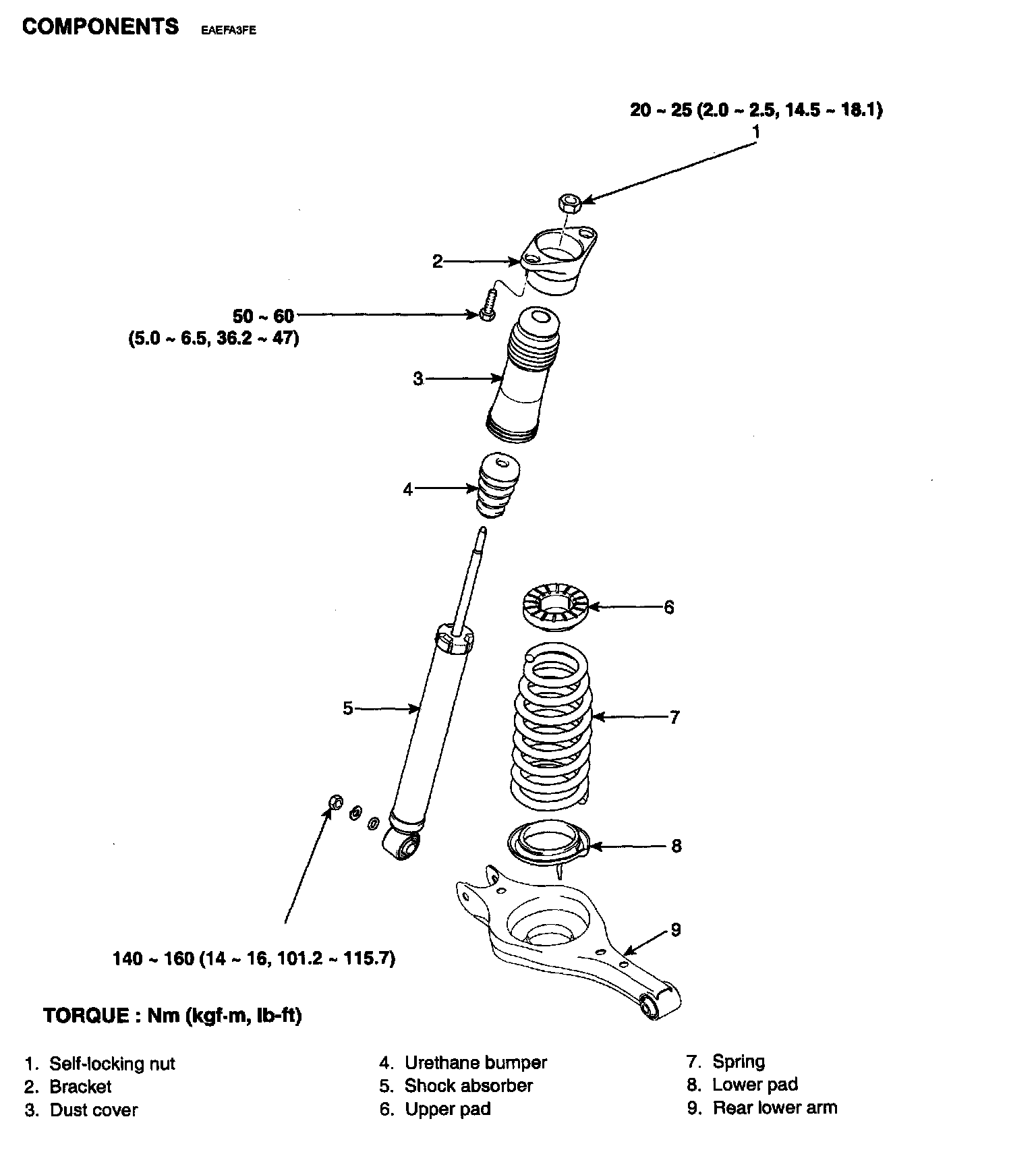

COMPONENTS:

REMOVAL
1. Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire from rear hub.

CAUTION: Be careful not to damage the hub bolts when removing the rear wheel and tire.

3. Remove the rear shock absorber assembly bolts (C) from the rear axle assembly (B), then remove the shock absorber assembly (A).





4. Remove the two rear shock absorber assembly mounting bolts (A).





5. Disassembly the rubber bumper and the dust cover from the rear shock absorber.
